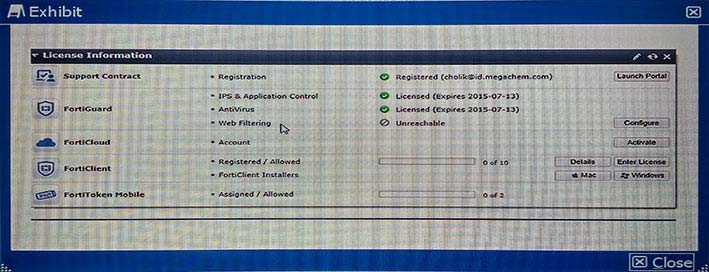

The dashboard widget indicates that FortiGuard Web Filtering is not reachable. However, AntiVirus, IPS, and Application Control have no problems as shown in the exhibit.
You contacted Fortinets customer service and discovered that your FortiGuard Web Filtering contract is still valid for several months.
What are two reasons for this problem? (Choose two.)
Correct Answer:
AB
🗳️
If Web filtering shows unreachable then we have to verify, whether web filtering enabled in security policies or not.
Web filtering enabled in a policy but the port 8888 and 53 are not selected, means the policy blocking the ports.
Reference:
http://cookbook.fortinet.com/troubleshooting-web-filtering/

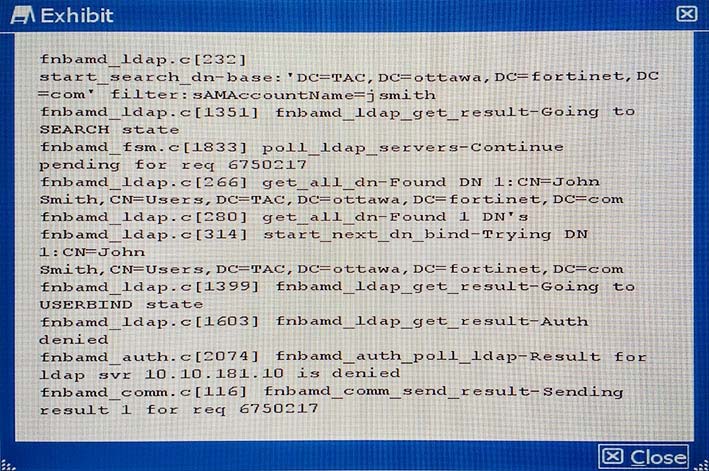

A customer is authenticating users using a FortiGate and an external LDAP server. The LDAP user, John Smith, cannot authenticate. The administrator runs the debug command diagnose debug application fnbamd 255 while John Smith attempts the authentication:
Based on the output shown in the exhibit, what is causing the problem?
Correct Answer:
D
🗳️

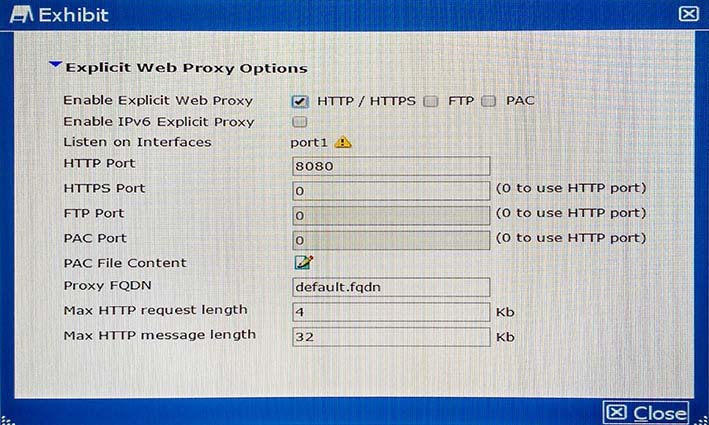

The exhibit shows an explicit Web proxy configuration in a FortiGate device. The FortiGate is installed between a client with the IP address 172.16.10.4 and a
Web server using port 80 with the IP address 10.10.3.4. The client Web browser is properly sending HTTP traffic to the FortiGate Web proxy IP address
172.16.10.254.
Which two sniffer commands will capture this HTTP traffic? (Choose two.)
Correct Answer:
CD
🗳️
Sniffer should run between webproxy to webserver
And also Sniffer between client machine to web proxy connectivity as it is in explicit mode.
Reference:
http://www.maxnetwork.org/fortigate-packet-capture

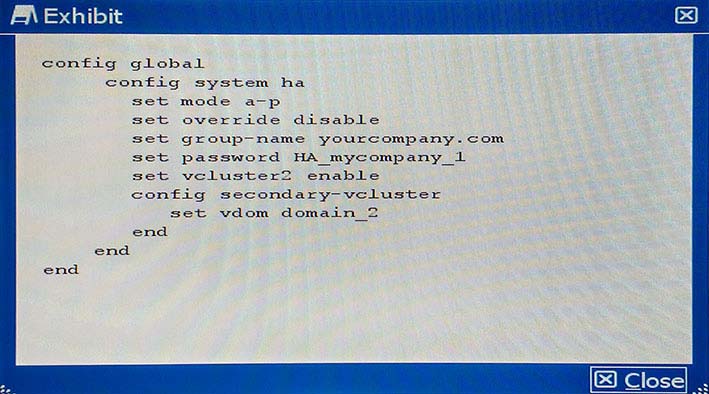

Your colleague has enabled virtual clustering to load balance traffic between the cluster units. You notice that all traffic is currently directed to a single FortiGate unit. Your colleague has applied the configuration shown in the exhibit.
Which step would you perform to load balance traffic within the virtual cluster?
Correct Answer:
C
🗳️
Reference:
http://docs.fortinet.com/uploaded/files/1088/fortigate-ha-50.pdf
