300-410 Exam - Free Actual Q&As, Page 1

300-410 Actual Exam Questions

Last updated on Dec. 21, 2024.

Vendor:Cisco

Exam Code:300-410

Exam Name:Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)

Exam Questions:620

Topic 1 - Single Topic

Question #1 Topic 1

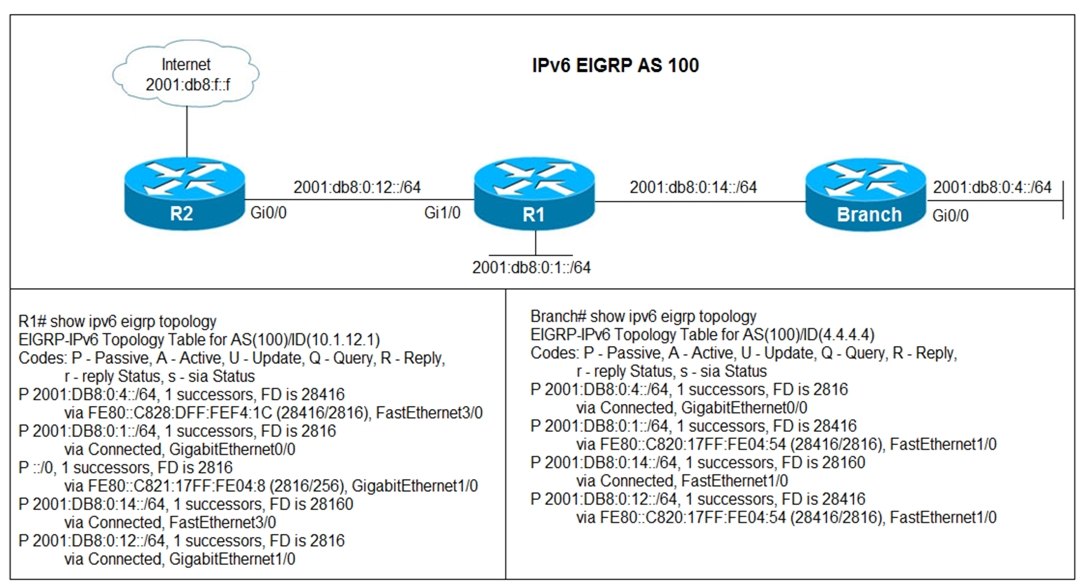

Refer to the exhibit. Users in the branch network of 2001:db8:0:4::/64 report that they cannot access the Internet.
Which command is issued in IPv6 router EIGRP 100 configuration mode to solve this issue?

A. Issue the eigrp stub command on R1.
B. Issue the no eigrp stub command on R1.
C. Issue the eigrp stub command on R2.
D. Issue the no eigrp stub command on R2.

Reveal Solution Discussion 28

Correct Answer: B 🗳️

Question #2 Topic 1

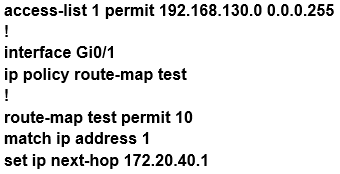

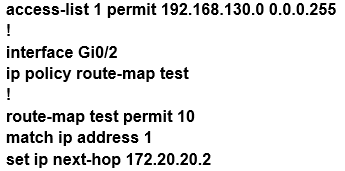

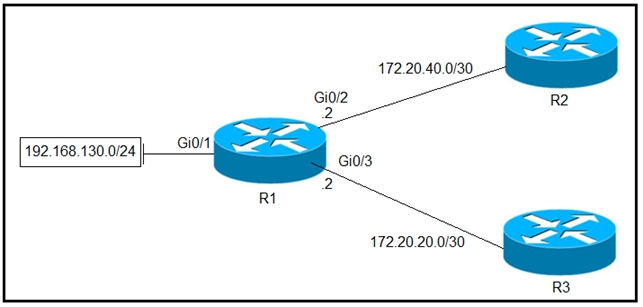

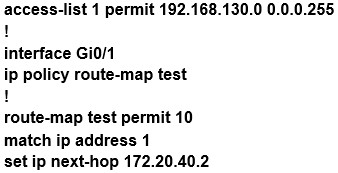

Refer to the exhibit. Which configuration configures a policy on R1 to forward any traffic that is sourced from the 192.168.130.0/24 network to R2?

A.

B.

C.

D.

Reveal Solution Discussion 14

Correct Answer: D

Question #3 Topic 1

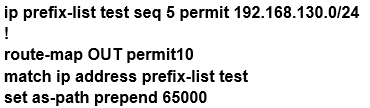

R2 has a locally originated prefix 192.168.130.0/24 and has these configurations:

What is the result when the route-map OUT command is applied toward an eBGP neighbor R1 (1.1.1.1) by using the neighbor 1.1.1.1 route-map OUT out command?

A. R1 sees 192.168.130.0/24 as two AS hops away instead of one AS hop away.
B. R1 does not accept any routes other than 192.168.130.0/24
C. R1 does not forward traffic that is destined for 192.168.30.0/24
D. Network 192.168.130.0/24 is not allowed in the R1 table

Reveal Solution Discussion 24

Correct Answer: A 🗳️

Question #4 Topic 1

Which method changes the forwarding decision that a router makes without first changing the routing table or influencing the IP data plane?

A. nonbroadcast multiaccess
B. packet switching
C. policy-based routing
D. forwarding information base

Reveal Solution Discussion 17

Correct Answer: C 🗳️

Question #5 Topic 1

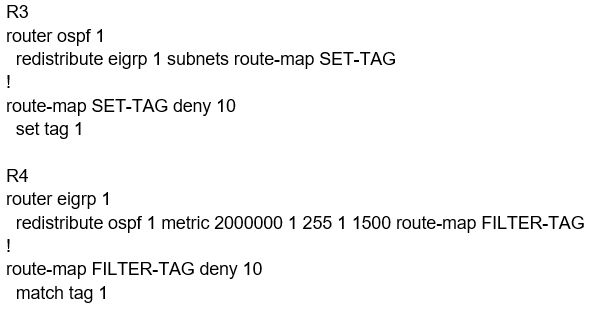

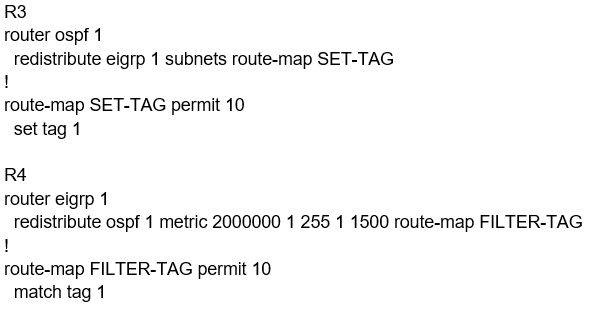

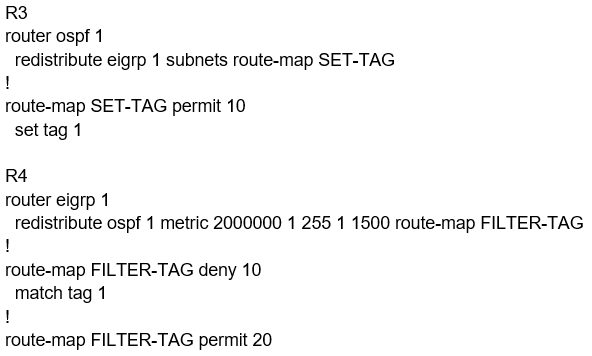

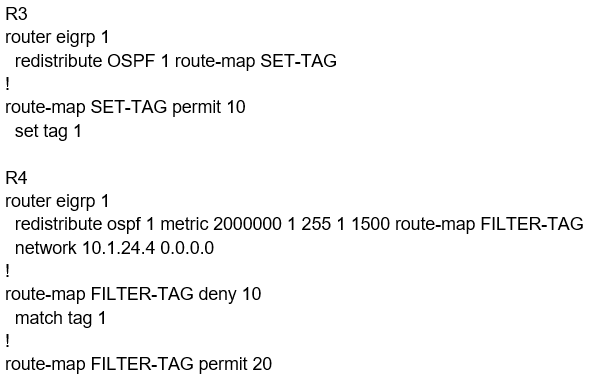

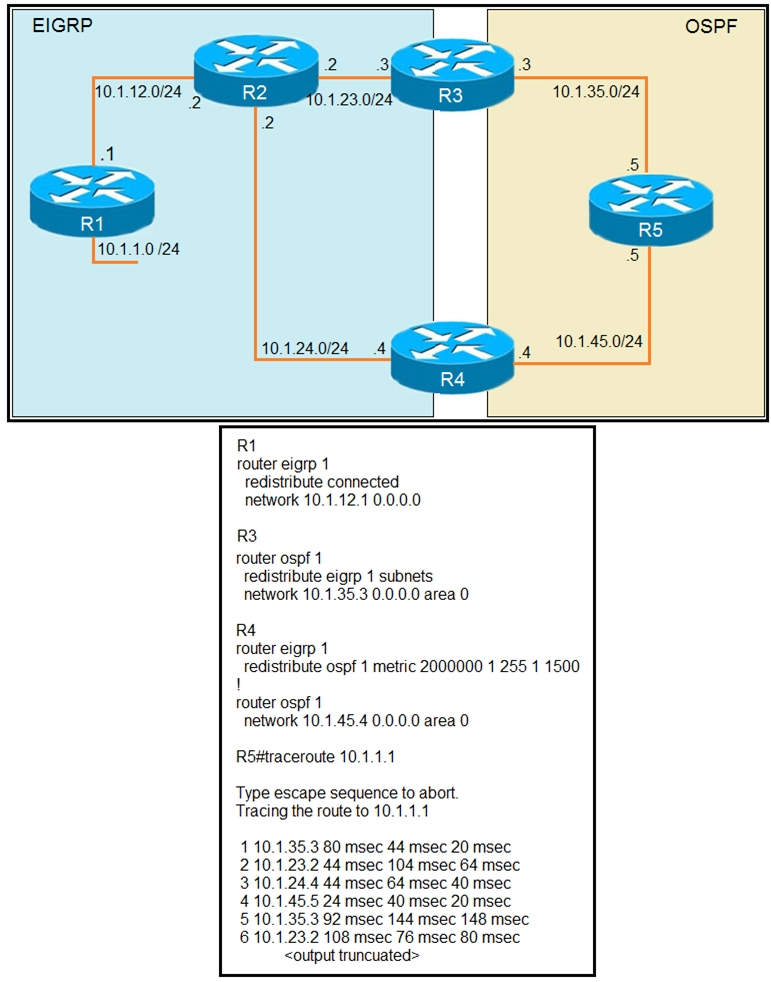

Refer to the exhibits. The output of the trace route from R5 shows a loop in the network.
Which configuration prevents this loop?

A.

B.

C.

D.

Reveal Solution Discussion 70

Correct Answer: B

Question #6 Topic 1

Refer to the exhibit. An engineer configures a static route on a router, but when the engineer checks the route to the destination, a different next hop is chosen.
What is the reason for this?

A. Dynamic routing protocols always have priority over static routes.
B. The metric of the OSPF route is lower than the metric of the static route.
C. The configured AD for the static route is higher than the AD of OSPF.
D. The syntax of the static route is not valid, so the route is not considered.

Reveal Solution Discussion 14

Correct Answer: C 🗳️

Question #7 Topic 1

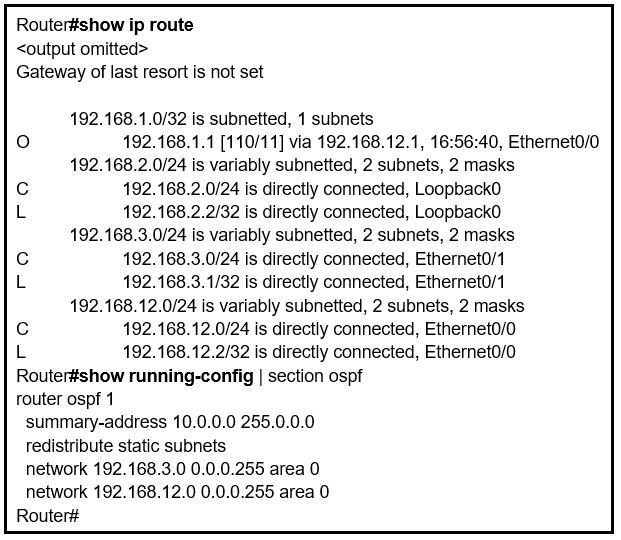

Refer to the exhibit. An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table.
Why is the summary route missing?

A. The summary-address command is used only for summarizing prefixes between areas.
B. The summary route is visible only in the OSPF database, not in the routing table.
C. There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.
D. The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

Reveal Solution Discussion 10

Correct Answer: C 🗳️

Question #8 Topic 1

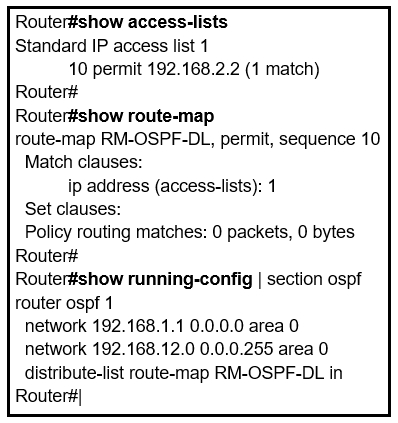

Refer to the exhibit. An engineer is trying to block the route to 192.168.2.2 from the routing table by using the configuration that is shown. The route is still present in the routing table as an OSPF route.
Which action blocks the route?

A. Use an extended access list instead of a standard access list.
B. Change sequence 10 in the route-map command from permit to deny.
C. Use a prefix list instead of an access list in the route map.
D. Add this statement to the route map: route-map RM-OSPF-DL deny 20.

Reveal Solution Discussion 72

Correct Answer: B 🗳️

Question #9 Topic 1

What is a prerequisite for configuring BFD?

A. Jumbo frame support must be configured on the router that is using BFD.
B. All routers in the path between two BFD endpoints must have BFD enabled.
C. Cisco Express Forwarding must be enabled on all participating BFD endpoints.
D. To use BFD with BGP, the timers 3 9 command must first be configured in the BGP routing process.
