Cisco 200-401 Exam Actual Questions

The questions for 200-401 were last updated on Nov. 17, 2024.
  • Viewing page 1 out of 16 pages.
  • Viewing questions 1-4 out of 64 questions


Topic 1 - Install, Replace, and Remove an End Device

Question #1 Topic 1

A small manufacturing company has a Class C network address on the plant floor and needs to create five subnets, each accommodating 25 endpoints. Which subnet mask needs to be configured?

  • A. 255.255.240.0
  • B. 255.255.255.128
  • C. 255.255.255.192
  • D. 255.255.255.224
  • E. 255.255.255.240
  • F. 255.255.255.248
Reveal Solution Hide Solution   Discussion

Correct Answer: D 🗳️

Question #2 Topic 1

Exhibit:

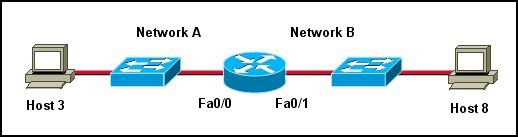

Refer to the exhibit. Host 3 on Network A is sending data to Host 8 on Network B. Which address is the default gateway of Host 3?

  • A. the address of the switch interface that is connected to router interface Fa0/0
  • B. the address of the switch interface that is connected to router interface Fa0/1
  • C. the address of the host that is connected to Network A
  • D. the address of the host that is connected to Network B
  • E. the address of the router interface Fa0/0
  • F. the address of the router interface Fa0/1
Reveal Solution Hide Solution   Discussion

Correct Answer: E 🗳️

Question #3 Topic 1

Which of the following correctly pairs the dotted decimal subnet mask with the correct number of binary bits that represent the subnet mask?

  • A. 255.255.255.192 and /25
  • B. 255.255.255.248 and /28
  • C. 255.255.255.224 and /26
  • D. 255.255.255.248 and /27
  • E. 255.255.255.240 and /28
  • F. 255.255.255.240 and /16
Reveal Solution Hide Solution   Discussion

Correct Answer: E 🗳️

Question #4 Topic 1

Exhibit:

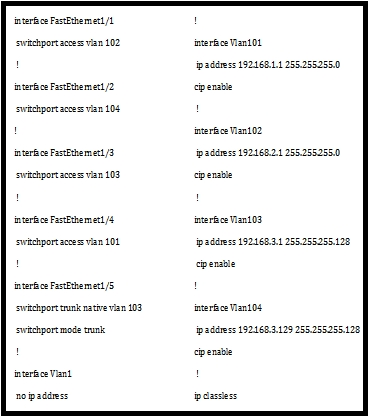

Refer to the exhibit. Which port should a PLC with IP address 192.168.3.65 be plugged into in order to communicate to the rest of the network?

  • A. FastEthernet1/1
  • B. FastEthernet1/2
  • C. FastEthernet1/3
  • D. FastEthernet1/4
  • E. FastEthernet1/5
Reveal Solution Hide Solution   Discussion

Correct Answer: C 🗳️
