Alcatel-Lucent 4A0-108 Exam Actual Questions

The questions for 4A0-108 were last updated on Nov. 15, 2024.
  • Viewing page 1 out of 50 pages.
  • Viewing questions 1-5 out of 247 questions


Topic 1 - Volume A

Question #1 Topic 1

Four routers in a domain are configured as BSR candidate. Router A is configured with a BSR priority of 10, Router B is configured with a BSR priority of 100.
Router C and Router D are at the default value. Router D has the highest IP address. Which router will be elected the PIM BSR?

  • A. Router A
  • B. Router B
  • C. Router C
  • D. Router D
Reveal Solution Hide Solution   Discussion

Correct Answer: B 🗳️

Question #2 Topic 1

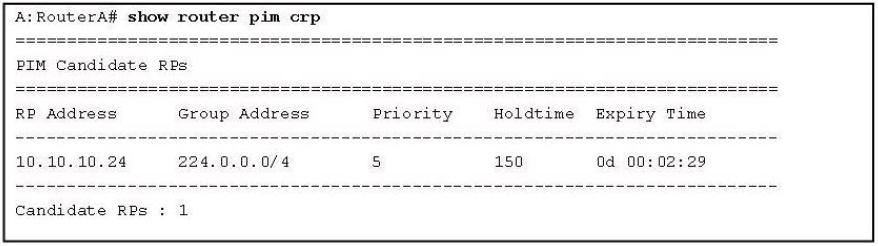

Refer to the exhibit.

Which router is this screen capture taken from?

  • A. Any router in the PIM multicast domain
  • B. Only from the Candidate-RP
  • C. Only from the Candidate-BSR
  • D. Only from the elected BSR
Reveal Solution Hide Solution   Discussion

Correct Answer: A 🗳️

Question #3 Topic 1

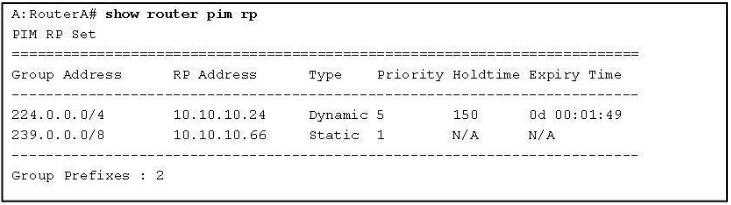

Refer to the exhibit.

Which router is this screen capture taken from?

  • A. Any router in the PIM multicast domain
  • B. Only from the Candidate-RP
  • C. Only from the Candidate-BSR
  • D. Only from the elected BSR
Reveal Solution Hide Solution   Discussion

Correct Answer: D 🗳️

Question #4 Topic 1

An Alcatel-Lucent 7750 SR is unable to locate a multicast source address in the multicast forwarding table. However, the source address is available in the unicast forwarding table.
Which statement best describes the default RPF check behavior of the 7750 SR?

  • A. The RPF check will fail as PIM relies exclusively on the multicast forwarding table by default
  • B. The RPF check will not fail, as by default PIM uses the multicast forwarding table first for RPF check, if not found in the multicast forwarding table then refers to unicast forwarding table
  • C. The RPF check will not fail as PIM uses only the unicast forwarding table by default
  • D. The RPF check will fail as the RPF check requires that the source address be present in both the unicast and multicast forwarding table
  • E. Not enough information is provided to answer the question
Reveal Solution Hide Solution   Discussion

Correct Answer: C 🗳️

Question #5 Topic 1

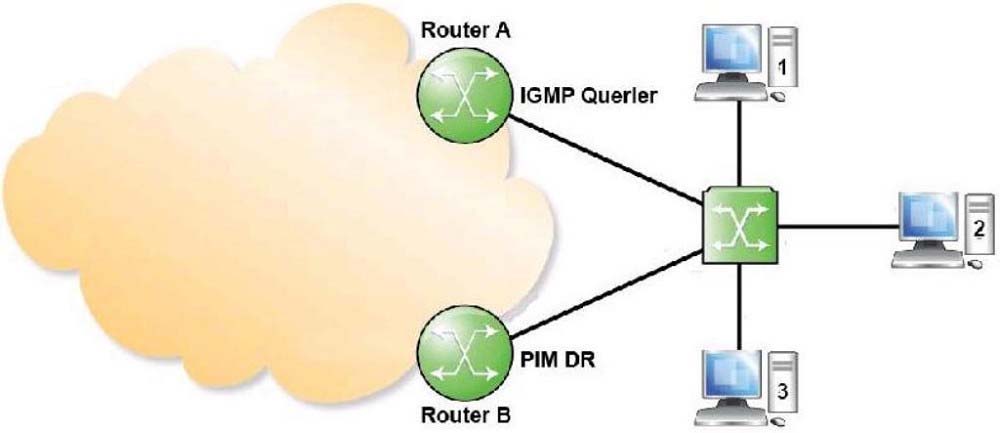

Refer to the exhibit.

The switch is not igmp-snooping/proxy capable. What will happen if host 2 issues an IGMP report to join a group?

  • A. Both Router A and Router B will get this IGMP report and Router B will propagate a PIM join towards the core network
  • B. Both Router A and Router B will get this IGMP report and both of them will propagate a PIM join towards the core network
  • C. Only Router A will get this IGMP report and Router A will propagate a PIM join towards the core network
  • D. Only Router A will get this IGMP report and as Router A is not PIM DR, so no further action
Reveal Solution Hide Solution   Discussion

Correct Answer: A 🗳️
