The assignment relationship links active structure elements with units of behavior that are performed by them, business actors with business roles that are fulfilled by them, and nodes with technology objects.

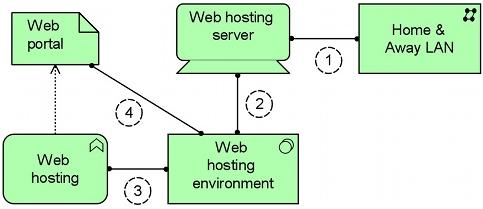

The device is a node so 1 and 2 are correct relationships. Function is a behavior so 3 is correct relationship. Correct Answer is 4.
According to Archi (software tool) none of the assignment relationships are allowed, unless the arrow points away from the software element, or points towards the device element.
