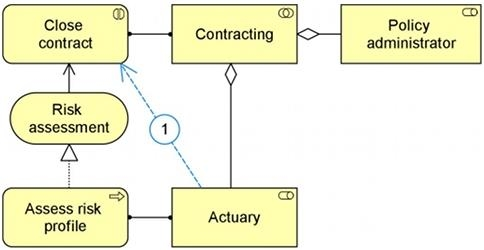

Consider the following diagram: What is the strongest structural relationship that can be derived from business role Actuary to business interaction Closecontract (indicated by number 1 in the diagram)?
From Archi 3 , the "used by" is replaced with "served by" (or serves from other direction). The "used by" is from Archi 2.
So, serves is right answer there fore it's D
The right answer is 'serves'.
There's an assignment, a realization and a serves relationship.
Assignment and realization are structural. Serves is dependency. Structural relationships are stronger than dependency relationships. Derived relationships have to be the weakest link, which is serves.
No idea what used by is.
From Archi 3 , the "used by" is replaced with "served by" (or serves from other direction). The "used by" is from Archi 2.
So, you are correct serves is right answer.
Assignment has my vote, whilst aggregation is technically stronger. D is definitely incorrect. " Used by" denotes "serving" which isn't a structural relationship but a dependency relationship type.
When I try this out in Archi (software tool), then it turns out that Assignment relationship is the strongest one.
upvoted 3 times
...
