SIMULATION - You need to ensure that the AzureBackupReport log for the Vault1 Recovery Services vault is stored in the WS12345678 Azure Log Analytics workspace. To complete this task, sign in to the Azure portal and modify the Azure resources.
Suggested Answer:See the explanation below.

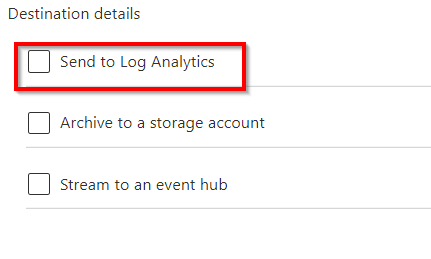

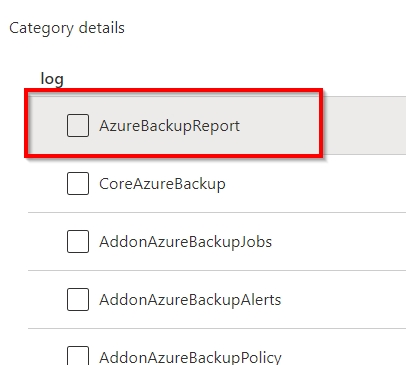

1. In the Azure portal, type Recovery Services Vaults in the search box, select Recovery Services Vaults from the search results then select Vault1. Alternatively, browse to Recovery Services Vaults in the left navigation pane. 2. In the properties of Vault1, scroll down to the Monitoring section and select Diagnostic Settings. 3. Click the Add a diagnostic setting link. 4. Enter a name in the Diagnostic settings name box. 5. In the Log section, select AzureBackupReport. 6. In the Destination details section, select Send to log analytics 7. Select the WS12345678 Azure Log Analytics workspace. 8. Click the Save button to save the changes. Reference: https://docs.microsoft.com/en-us/azure/backup/backup-azure-diagnostic-events
It is recommended to conduct the simulations in your own test lab (you can get a trial for testing Azure from Microsoft). I have gone through this process myself and have come to the following result (I did NOT find the other mentioned menu items):
Search for the Vault in Azure and open it.
Under Diagnostic settings, select Categories: Azure Backup Reporting Data, and under Destination details, select the Subscription and the Log Analytics Workspace.
Save and you are done!
Sign in to the Azure portal.
Navigate to Vault1 Recovery Services vault.
In the left-hand menu, click on Backup Reports under the Monitoring and Reports section.
In the Backup Reports blade, click on Configure.
In the Diagnostics Settings blade, click on Add diagnostic setting.
In the Diagnostic settings blade, provide a name for the setting.
Under Log, check the box for AzureBackupReport.
Under Destination details, select Send to Log Analytics workspace.
In the Log Analytics workspace dropdown, select WS12345678.
Click on Save to apply the changes.
Also remember to change the Destination table to Azure diagnostics, as the AzureBackupReport event works only in 'Azure diagnostics' mode.
upvoted 3 times
...
