Exam AZ-700 topic 3 question 27 discussion

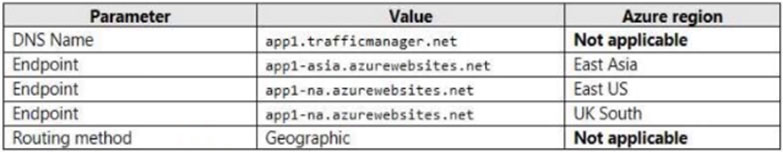

A. two profiles and five endpoints 1x Parent Geographic Profile: 3x Endpoints: -East US -UK South -East Asia Nested Endpoint* *A nested endpoint is still an endpoint, created by using the "Add" button in the settings/Endpoints of the TM Profile. The type of endpoint is just 'Nested endpoint' instead of Azure Endpoint or External Endpoint. 1x Asia Child Weighted Endpoint (to be nested) 2x Endpoints -Existing Tokyo office Endpoint -New Endpoint in Asia 3+2=5

You cannot combine both 'Weighted' and 'Geographic' traffic-routing in a single profile. The parent profile still uses the Geographic traffic-routing method and child profile uses the Weighted traffic-routing method. This 'child' profile act as an endpoint to the 'parent' profile.

Originally: 1 profile + 3 endpoints +1 profile for the weighted profile in Asia ==> 2 profiles +2 endpoints: +1 for the profile and +1 for Japan ==> 5 endpoints

in azure traffic manager, when using a nested profile is the nested profile considered an endpoint too? ChatGPT said: ChatGPT Yes, in Azure Traffic Manager, a nested profile is considered an endpoint as well. A nested profile allows you to configure a Traffic Manager profile that references another Traffic Manager profile as one of its endpoints. This setup enables more complex traffic routing scenarios by combining multiple routing methods or adding more layers of control. -> I would say A too..

The correct answer is A: two profiles and five endpoints We will need to create a child profile. The child nested profile will be an endpoint to the parent profile that will use geography routing. The parent profile has 3 endpoints. The child profile will have 2 endpoints: Tokyo and Asia endpoint. The traffic will be routed using weight for testing. Overall, we have two traffic manager profiles and 5 endpoints. From Microsoft documentation “To create a nested profile, you add a 'child' profile as an endpoint to a 'parent' profile.” Reference: https://learn.microsoft.com/en-us/azure/traffic-manager/traffic-manager-nested-profiles#example-1-combining-performance-and-weighted-traffic-routing

B is Honey 2 profiles Geographic for parents and Weighted for child, parent 3 endpoints and child profile 1 endpoint

For Asia: 3 Endpoints: 1+1+1(Nested Endpoint with 2 Child endpoint using Weight method) Another regions has 2 Endpoints, So 2 profiles(Nested and geographic) and 5 Endpoints

you will need to add the updated server to the list so you end up with 4 nodes, for Japan, you will need a Traffic porfile , with routing geographic and inside that a weighted group with two server, so answer B
