DRAG DROP -
You have two Azure subscriptions named Subscription1 and Subscription2. Subscription1 contains a virtual network named Vnet1. Vnet1 contains an application server. Subscription2 contains a virtual network named Vnet2.
You need to provide the virtual machines in Vnet2 with access to the application server in Vnet1 by using a private endpoint.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

Show Suggested Answer Hide Answer

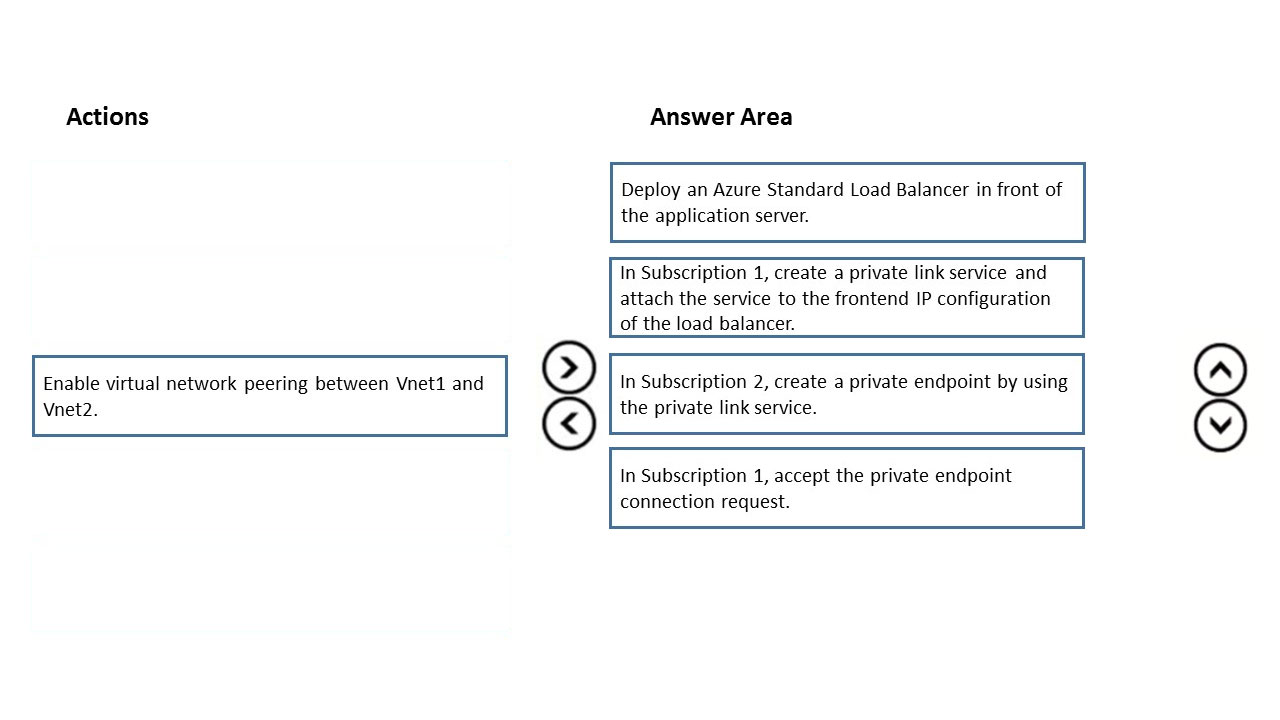

Suggested Answer:
Step 1: Deploy an Azure Load Balancer in front of the application server
Configure your application to run behind a standard load balancer in your virtual network.
Step 2: In Subscription 1, create a private link service and attach the service to the frontend IP configuration of the load balancer.
Create a Private Link Service referencing the load balancer above.
Step 3: In Subscription 2, create a private endpoint by using the private link service.
Private Link service can be accessed from approved private endpoints in any public region. The private endpoint can be reached from the same virtual network, regionally peered VNets, globally peered VNets and on premises using private VPN or ExpressRoute connections.

Step 4: In Subscription1, accept the private endpoint connection request.
Network connections can be initiated only by clients that are connecting to the private endpoint.
Not:
Incorrect: Enable virtual network peering between Vnet1 and Vnet2.
Reference:
https://docs.microsoft.com/en-us/azure/private-link/private-link-service-overview https://docs.microsoft.com/en-us/azure/private-link/private-endpoint-overview

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
jellybiscuit
Highly Voted 2 years, 6 months ago
I spent the entire time wondering why I'm creating a load balancer. Finally realized it's an "application server" and not an "app service" Answer is correct.
upvoted 16 times
...
0dc759b
Most Recent 7 months ago

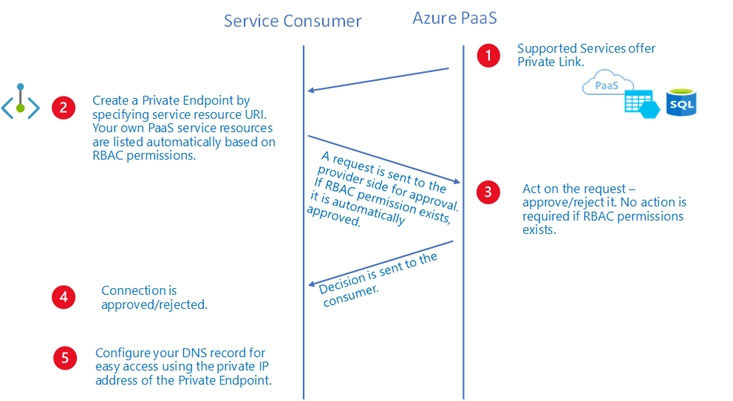

you can see workflow here https://learn.microsoft.com/en-us/azure/private-link/private-link-service-overview
upvoted 3 times
...
TJ001
2 years, 3 months ago
Answer is correct Please not peering is not required .. the whole point of Private Link is to provide connectivity without peering..
upvoted 2 times
...
alexGv
2 years, 4 months ago
I seeing something a little confused, maybe the question itself is "wrong" because how is possible to use a LoadBalancer that I assume as "Internal" to publish a Private Endpoint "attaching the service private IP of the Private Endpoint as frontend IP of the Load Balancer" and not "as the Backend pool of it". Then why we need a NLB if the Private Endpoint itself is capable to "hear" connections through his own private IP address" Can somebody else try to explain me...Thanks!
upvoted 1 times
Feliphus
5 months, 1 week ago
There are a few services not compatible with the Private technology, then you need to "publish" using a LB in front of them
upvoted 1 times
...
alexGv
2 years, 4 months ago
Sorry, reviewed, https://learn.microsoft.com/en-us/azure/private-link/private-link-service-overview#workflow
upvoted 1 times
...
...
GohanF2
2 years, 5 months ago
Answer is correct.
upvoted 1 times
...
ragav21
2 years, 6 months ago
Why is peering not sufficient ?
upvoted 2 times
tfktfk
1 year, 10 months ago
we use private link service to avoid ips overlap
upvoted 1 times
...
Leib
2 years, 6 months ago
it is but, you need to use private endpoint.
upvoted 4 times
...
...
Cristoicach91
2 years, 7 months ago
correct
upvoted 4 times
...
