Exam DP-203 topic 4 question 22 discussion

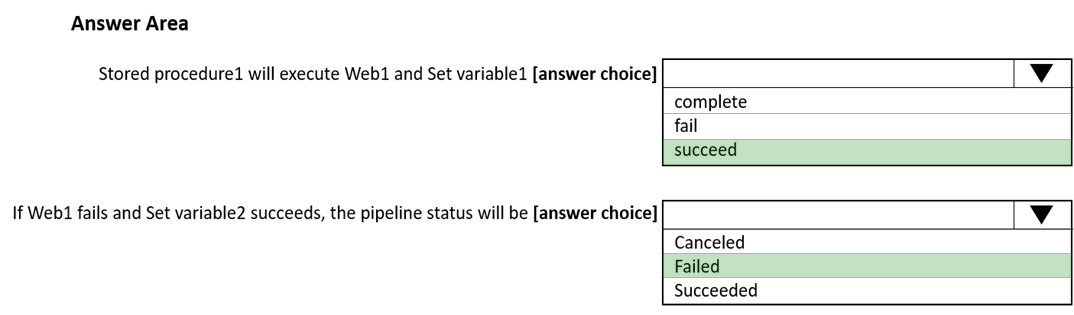

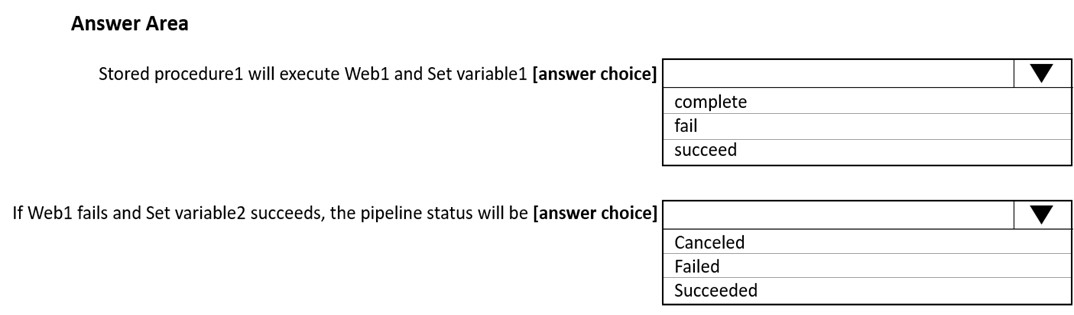

The answers are correct. The second question is "failed" because web1 has both a success and failed path. web1 would have to have only a failed path for the second question to be considered successful.

The second answer should be Succeeded as 'Set Variable 2' has failed dependency on Web1.

The answer given is correct. Please take notice of the colour of the dependency from set variable to stored procedure.. It is on success, NOT skip dependency. This is a GOTCHA question. If you review the MS documentation the pattern shown that looks like this has a grey line (SKIP DEPENDENCY) which is different to this example. Only when skip dependency is used in a pattern like this would both examples be success.

both are succeded

Both Succeed

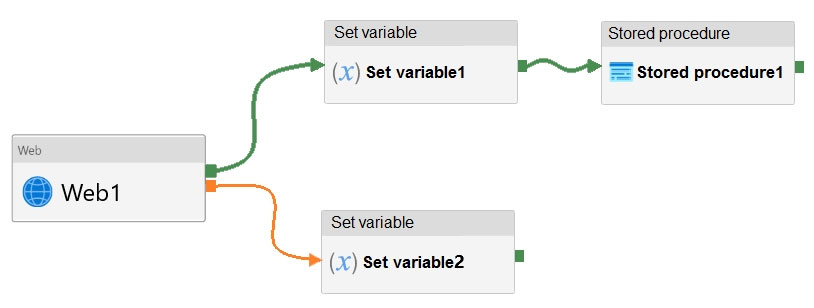

The arrow between "Set Variable 1" and "Stored Procedure 1" is green which indicates a "succeed dependency". (a grey arrow indicates skipped). This means the pipeline will fail on answer 2 since Stored Procedure 1 will never execute.

when PL has a success and fail path if any of those completes the PL is succeeded. So second is succeeded

Both Success

Both are success 100% sure about this

I think both are successful bcz i think when web activity fail it will pass to the set variable and the purpose of the set varible will beCOMPLETED so pipeline will be success

Both should be succeed https://learn.microsoft.com/en-us/azure/data-factory/tutorial-pipeline-failure-error-handling#summary-table

Do If Skip Else block In this approach, customer defines the business logic, and defines both the Upon Failure path, and Upon Success path, with a dummy Upon Skipped activity attached. This approach renders pipeline succeeds, if Upon Failure path succeeds.

1. Success and 2. Failed

The answer is correct! It's actually pretty neat how ADF determines that. If an activity fails but there was a subsequent OnSuccess activity that never runs, it's a fail. To handle that, you also need an OnSkipped activity to follow the OnSuccess activity in case it never ran! https://learn.microsoft.com/en-us/azure/data-factory/tutorial-pipeline-failure-error-handling#do-if-else-block

second box should be succeeded https://learn.microsoft.com/en-us/azure/data-factory/tutorial-pipeline-failure-error-handling#do-if-skip-else-block

Using this microsfot doc: https://learn.microsoft.com/en-us/azure/data-factory/tutorial-pipeline-failure-error-handling#try-catch-block that claims ""We determine pipeline success and failures as follows: -)Evaluate outcome for all leaves activities. If a leaf activity was skipped, we evaluate its parent activity instead -)Pipeline result is success if and only if all nodes evaluated succeed"" I used this logic When web1 activity fails: node setVariable2 succeeds and setVariable1 is skipped and its parent node web1 failed; overall pipeline fails

In any scenario pipeline will show success status, cause we are catching the failure
