Exam AZ-700 topic 2 question 3 discussion

Actual exam question from Microsoft's AZ-700
Question #: 3
Topic #: 2
[All AZ-700 Questions]

HOTSPOT -
You have the Azure environment shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

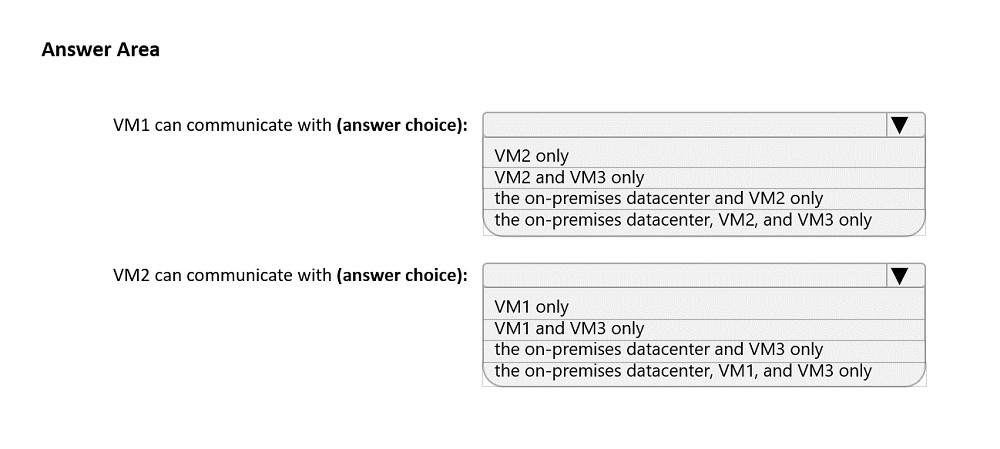

Hot Area:

Show Suggested Answer Hide Answer

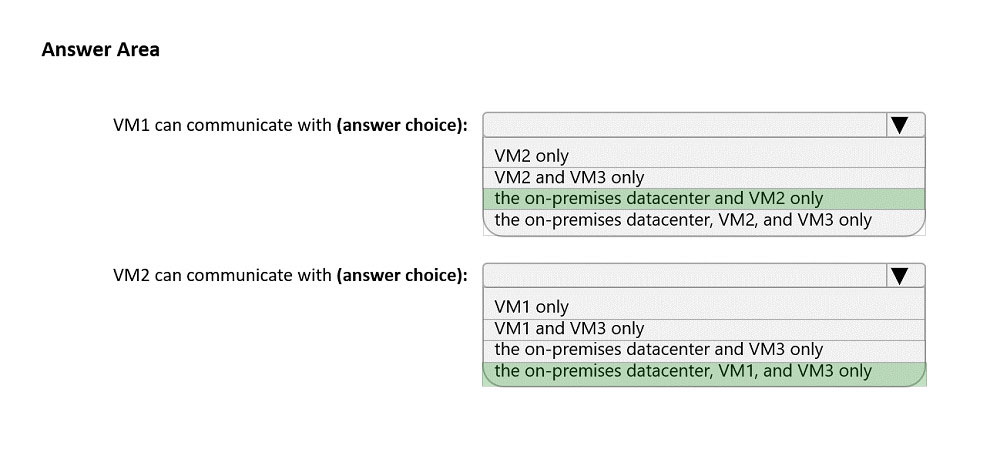

Suggested Answer:
Reference:
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-peering-gateway-transit?toc=/azure/virtual-network/toc.json
by RickMorais at Oct. 21, 2021, 2:03 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
RickMorais
Highly Voted 2 years, 6 months ago
Given answers are correct
upvoted 49 times
...
Vivek_Dwivedi
Highly Voted 2 years, 5 months ago
Use Remote gateway in VNET 2 peering is not mentioned. Which means VM2 can connect only to Vm1 and Vm3.
upvoted 18 times
sallymaher
2 years, 3 months ago
That is mentioned in Enable transit gateway :- Virtual network gateway: Use this virtual network's gateway ( in the vnet that contains the GW ) and ( Virtual network gateway: Use the remote virtual network's gateway) in the remote one so the answer is correct .
upvoted 11 times
...
kpallivishal
2 years, 3 months ago
enable transit gateway means selecting both in vnet peering ( Use this virtual network's gateway + Use the remote virtual network's gateway ) . so above answer is correct as mentioned in diagram
upvoted 9 times
...
...
Lazylinux
Most Recent 5 months, 3 weeks ago
Given answer is correct
upvoted 3 times
...
Verytutos
7 months, 2 weeks ago
Appeared on Exam 05 Sep 2023
upvoted 3 times
...
fsgsfgs
9 months ago
Given answers are correct
upvoted 4 times
...
khanda
1 year ago
Given answer is correct.
upvoted 4 times
...
liono
1 year, 3 months ago
Correct.
upvoted 4 times
...
Goofer
1 year, 4 months ago
VNET1 and VNET2 do not have a router configured to route trafic to another VNET VNET2 and VNET3 do not have UDR configured to route trafic to the router. VM1 --> on-premises and vm2 VM2 --> VM1 and VM3
upvoted 1 times
...
Bill831231
1 year, 6 months ago
what if for the S2S VPN without BGP enabled? VM2 can still communicate with On-premise?
upvoted 1 times
...
HasanHHH
1 year, 6 months ago
Correct: 1. VM1 Can Communicate with On-Premise datacenter due to S2S VPN and VM2 due to Bi-Directional VNet Peering 2. VM2 an Communicate with On-Premise datacenter, VM1 due Gateway transit( VNET1-VNET2) & S2S VPN (VNET1-Datacenter), and VM3 (VNET2-VNET3 VNet Peering)
upvoted 11 times
...
sapien45
1 year, 6 months ago
Repoonses provided are correGateway transit is a peering property that lets one virtual network use the VPN gateway in the peered virtual network for cross-premises or VNet-to-VNet connectivity. It means that both options are selected in the vnettovnet peering : Use the remote virtual network's gateway Use this virtual network's gateway Therefore VM2 can communicate with on premises
upvoted 2 times
...
AdityaGupta
1 year, 7 months ago
Correct Answer
upvoted 1 times
...
1particle
1 year, 8 months ago
Correct. VM2 uses VM1's gateway to reach the Datacenter.
upvoted 1 times
...
unclegrandfather
1 year, 10 months ago
A slightly modified version of this was on the exam on 6/28/22. Make sure you understand WHY the answers are correct.
upvoted 2 times
WickedMJ
1 year, 8 months ago
Can you advise whether it varies due to the placement of the "VPN Gateway" on the graph? TIA
upvoted 1 times
...
...
wsrudmen
1 year, 11 months ago
Correct VM1 can't access VM3 because (an UDR should be needed to achieve this): https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-peering-overview
upvoted 2 times
...
Edward1
2 years ago
Correct: Gateway transit is a peering property that lets one virtual network use the VPN gateway in the peered virtual network for cross-premises or VNet-to-VNet connectivity.
upvoted 2 times
...
rockethack
2 years, 2 months ago
This question was on the exam on 18th Feb 2022.
upvoted 2 times
...
Load full discussion...
