Exam AZ-700 topic 5 question 2 discussion

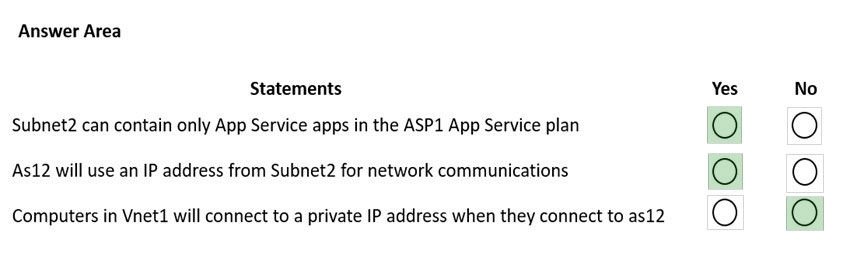

1. Yes: Virtual Network Integration supports only one virtual interface per worker. One virtual interface per worker means one regional virtual network integration per App Service plan. All the apps in the same App Service plan can use the same virtual network integration. https://docs.microsoft.com/en-us/azure/app-service/overview-vnet-integration under section “How regional virtual network integration works”. 2. Yes: “When regional virtual network integration is enabled, your app makes outbound calls through your virtual network. The outbound addresses that are listed in the app properties portal are the addresses still used by your app.”. https://docs.microsoft.com/en-us/azure/app-service/overview-vnet-integration under section “How regional virtual network integration works”. 3. No: “you can't use virtual network integration to provide inbound access to your app.”, if you need Inbound access to the App you will need to setup a Service Endpoint or Private Endpoint. https://docs.microsoft.com/en-us/azure/app-service/overview-vnet-integration under “ Regional virtual network integration”.

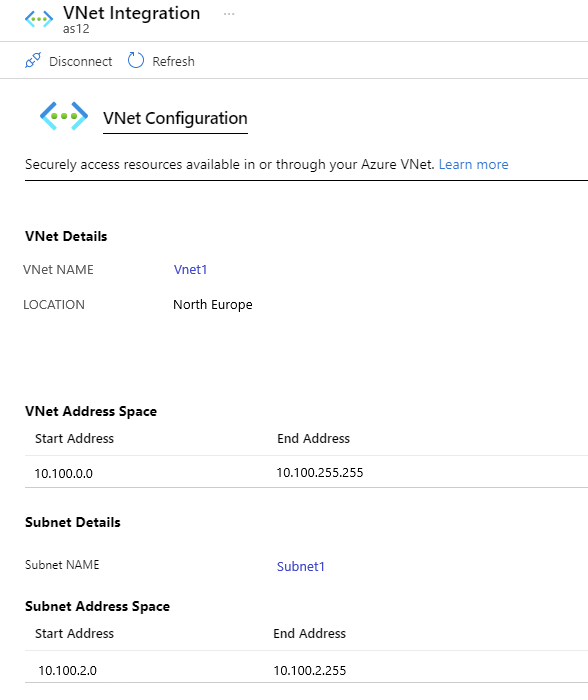

Clearly Subnet2 in the question statements has to be Subnet1?

I support the YYN, but: created RG1 & Vnet1 in East US created WepApp1, WebApp2 in Vnet1/subnet1 [ASP1] created WepApp3 in Vnet1/subnet2 [ASP2] succedeed to integrate all WebApps with Vnet1/subnet1 disconnected WebApp2 from Vnet1/subnet1 added back WebApp2 to Vnet1/subnet1 We see a single message: Add virtual network integration Subnet label message Subnet must not be in use by other delegations and must have sufficient capacity. I assume technically is possible to integrate more than one WebApp from different App Plans with a subnet but it's not recommended.

But lets be fair, question has Subnet 1 and you are busy endorsing answers from a question you created. As it stands, answer is NNY

YYN. Same question: https://www.examtopics.com/exams/microsoft/az-700/view/11/

YYN - just ignore subnet name error as highlighted by others already :)

As written/pictured it's NNN If the vnet integration is really with subnet2, the it's YYN

If we replace Subnet1 by Subnet2 in the screenshot : YYN *"Subnet1" is dedicated to vnet integration * as12 will use IP address from "subnet1" for outbound *If you need Inbound access to the App you will need to setup a Service Endpoint or Private Endpoint.

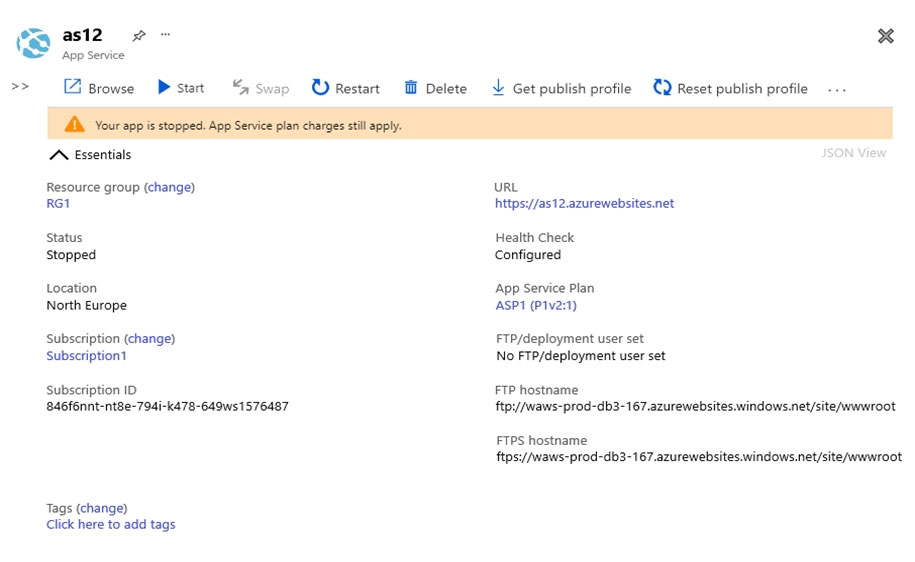

it should be NNN The App service status is "stopped"

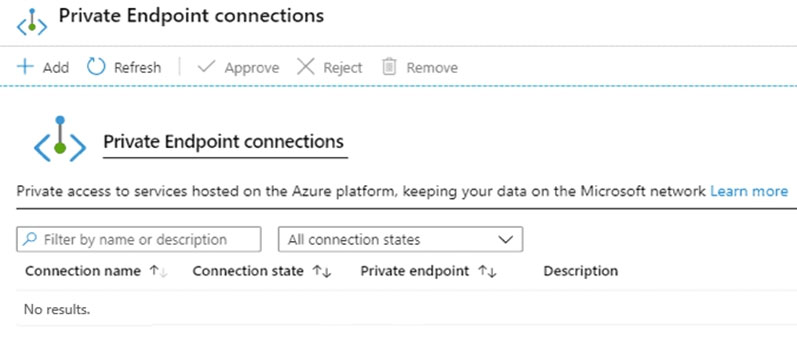

There is no private endpoint configured. NNN

Appeared on exam Jun/28/22. Exam shows Subnet2 in the pictures.

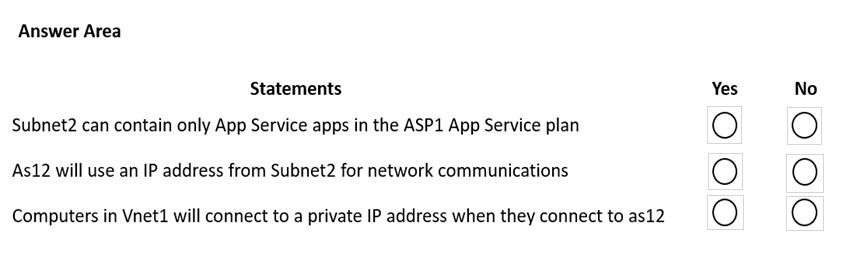

Subnet1 can contain only App Service apps in the ASP1 App Service plan > Yes "Subnet1" is dedicated to vnet integration Virtual Network Integration supports only one virtual interface per worker. One virtual interface per worker means one regional virtual network integration per App Service plan. All the apps in the same App Service plan can use the same virtual network integration. https://docs.microsoft.com/en-us/azure/app-service/overview-vnet-integration#how-regional-virtual-network-integration-works The feature supports only one virtual interface per worker. One virtual interface per worker means one regional virtual network integration per App Service plan. All the apps in the same App Service plan can only use the same virtual network integration to a specific subnet. If you need an app to connect to another virtual network or another subnet in the same virtual network, you need to create another App Service plan. The virtual interface used isn't a resource that customers have direct access to.

Appeared on exam 6/27/2022

Appeared in exam on 11/Feb/2022

1.Yes 2.Yes. When regional virtual network integration is enabled, your app makes outbound calls through your virtual network. The outbound addresses that are listed in the app properties portal are the addresses still used by your app. 3.No. Virtual network integration doesn't enable your apps to be accessed privately

Appeared in exam on 17/01/2022

Variant on exam 1/6/2022
