Exam AZ-120 topic 5 question 12 discussion

Actual exam question from Microsoft's AZ-120

Question #: 12
Topic #: 5

HOTSPOT -

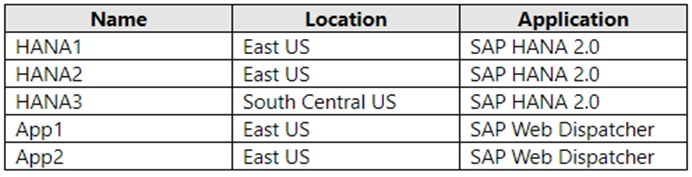

You have an SAP production landscape on Azure that contains the virtual machines shown in the following table.

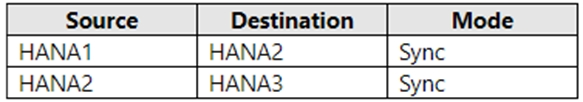

You configure HANA system replication as shown in the following table.

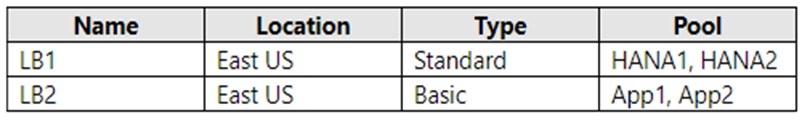

You configure two load balancers as shown in the following table.

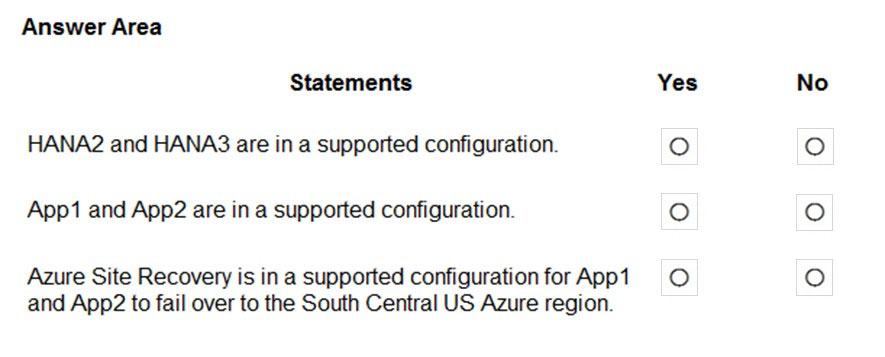

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

Suggested Answer:

Reference:
https://help.sap.com/viewer/6b94445c94ae495c83a19646e7c3fd56/2.0.02/en-US/f730f308fede4040bcb5ccea6751e74d.html https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/sap-hana-high-availability

by o2091 at Sept. 19, 2021, 11:51 a.m.

Comments

Submit Cancel

jsethu

Highly Voted 1 year, 6 months ago

N N Y 1. N between Region HSR Async 2. N Standard LB (Not Basic LB) 3. Cross Region for SAP application Server (ASR) used for replication

upvoted 14 times

...

azuremaddy

Most Recent 8 months ago

I think it's Y N N

upvoted 1 times

...

Mittun

9 months, 2 weeks ago

N As Hana3 should be in Async due to cross -region setup, N Standard LB required for Apps N for ASR should be on same region

upvoted 1 times

...

princekost

1 year, 7 months ago

For me Y Y N

upvoted 4 times

d0bermannn

1 year, 6 months ago

elaborate plz how basic lb can be used to implement high availability for backend of 2 different availability zone\set app services [p.2]

upvoted 2 times

...
