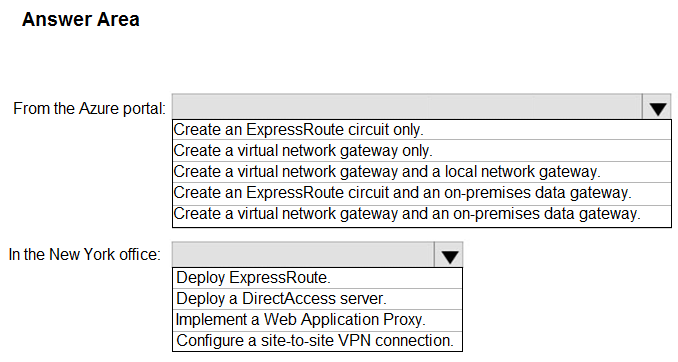

HOTSPOT - You need to meet the connection requirements for the New York office. What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point. Hot Area:

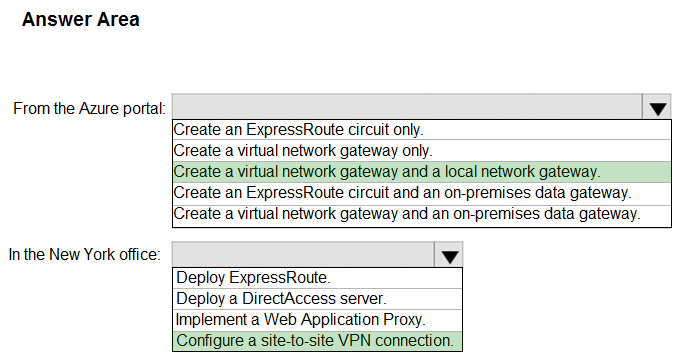

Suggested Answer:

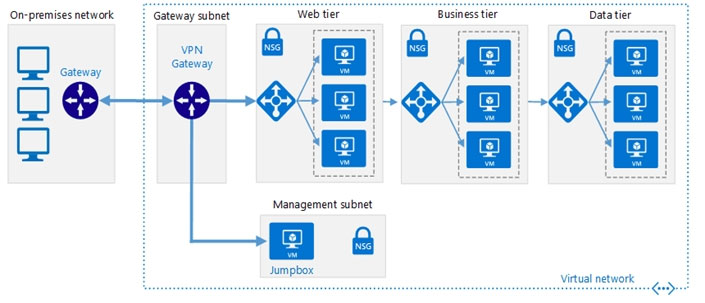

Box 1: Create a virtual network gateway and a local network gateway. Azure VPN gateway. The VPN gateway service enables you to connect the VNet to the on-premises network through a VPN appliance. For more information, see Connect an on-premises network to a Microsoft Azure virtual network. The VPN gateway includes the following elements: ✑ Virtual network gateway. A resource that provides a virtual VPN appliance for the VNet. It is responsible for routing traffic from the on-premises network to the VNet. ✑ Local network gateway. An abstraction of the on-premises VPN appliance. Network traffic from the cloud application to the on-premises network is routed through this gateway. ✑ Connection. The connection has properties that specify the connection type (IPSec) and the key shared with the on-premises VPN appliance to encrypt traffic. ✑ Gateway subnet. The virtual network gateway is held in its own subnet, which is subject to various requirements, described in the Recommendations section below. Box 2: Configure a site-to-site VPN connection On premises create a site-to-site connection for the virtual network gateway and the local network gateway. Scenario: Connect the New York office to VNet1 over the Internet by using an encrypted connection. Incorrect Answers: Azure ExpressRoute: Established between your network and Azure, through an ExpressRoute partner. This connection is private. Traffic does not go over the internet. Reference: https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/hybrid-networking/vpn
Answer copied from mlantonis:
Box 1: Create a virtual network gateway and a local network gateway.
Box 2: Configure a site-to-site VPN connection.
As per requirements:
- Connect the New York office to VNet1 over the Internet by using an encrypted connection.
A Site-to-Site VPN gateway connection is used to connect your on-premises network to an Azure virtual network over an IPsec/IKE (IKEv1 or IKEv2) VPN tunnel. This type of connection requires a VPN device located on-premises that has an externally facing public IP address assigned to it. Site-to-Site VPN connection requires Virtual network gateway, Local network gateway and Gateway Subnet.
Note: ExpressRoute connections don't go over the public Internet, the connection is private.
I don't understand why New York office needs local gateway if it does not have data centre.
"Litware has data centers in the Montreal and Seattle offices."
My teacher told me that there may in fact be a lab but it would mostly already set and you would have to click on whatever option to fulfill the question's requirement. So who knows if it's actually true or not.
Search for local network gateway and create.
This is essentially a reference point for Azure to know how to connect to the remote endpoint. This is used when establishing the VPN connection
Thank. I quickly searched and found it
A local network gateway represents the hardware or software VPN device in your local network. Use this with a connection to set up a site-to-site VPN connection between an Azure virtual network and your local network.
There are no additional charges for creating local network gateways in Microsoft Azure.
