Exam PL-200 topic 5 question 5 discussion

Actual exam question from Microsoft's PL-200
Question #: 5
Topic #: 5
[All PL-200 Questions]

DRAG DROP -
You create a report by using Power BI Desktop and publish the report to the Power BI service. You enable Power BI visualization embedding in a model-driven app.
You need to configure the model-driven app to display a Power BI tile.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

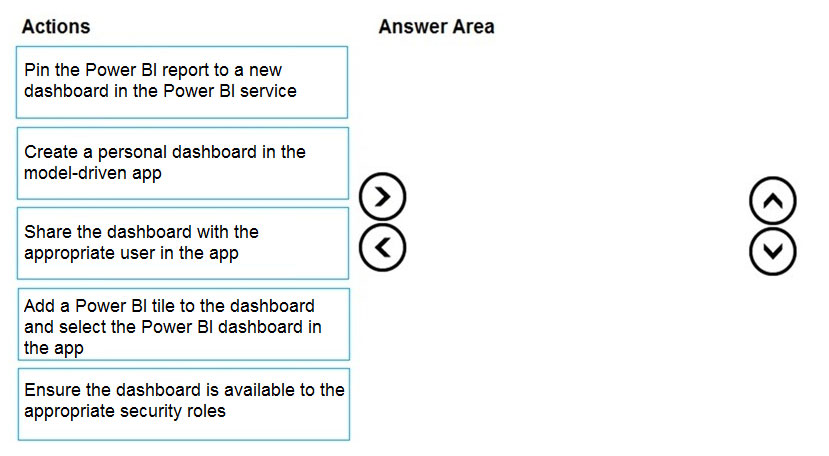

Select and Place:

Show Suggested Answer Hide Answer

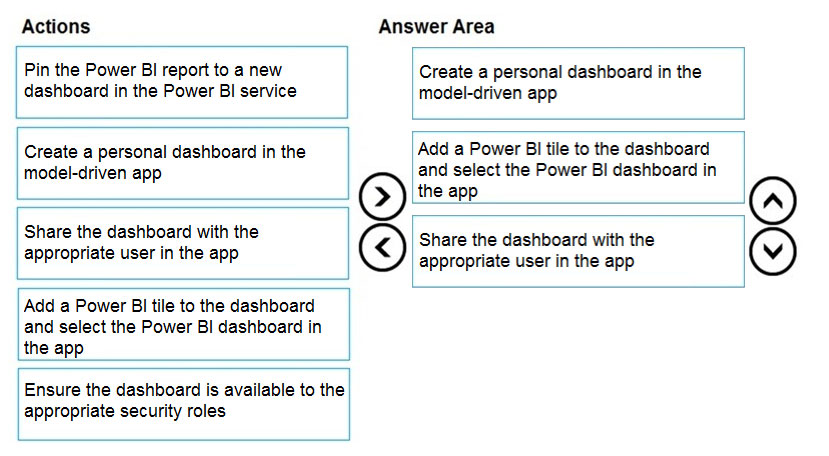

Suggested Answer:
Step 1: Create a personal dashboard in the model-driven app
Add a Power BI dashboard to your model-driven app.
Step 2: Add a Power BI tile to the dashboard and select the Power BI dashboard in the app.
Add one Power BI tiles to your personal dashboard.
Step 3: Share the dashboard with the appropriate user in the app
Share the personal dashboard that contains Power BI visualizations: you must configure sharing in both Dataverse and Power BI, and the user or group must have the same credentials and appropriate level of access in both services. To share your personal dashboard in your app go to, Dashboards. In the list of dashboards, select the personal dashboard you want, and then select SHARE DASHBOARD.
Reference:
https://docs.microsoft.com/en-us/powerapps/user/add-powerbi-dashboards

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
DennisWypior
Highly Voted 3 years, 3 months ago
In my opinion it's: 1) Pin the Power BI report to a new dashboard in the Power BI service 2) Create a personal dashboard in the model-driven app (as Power BI dashboards are always personal dashboards (that can be shared)) 3) Add a power BI tile to the dashboard and select the Power BI dashboard in the app.
upvoted 33 times
TBeach
3 months, 1 week ago
Copilot answer: 1.Create a personal dashboard in the model-driven app: This allows you to add and customize the dashboard where the Power BI tile will be displayed. 2. Add a Power BI tile to the dashboard and select the Power BI dashboard in the app: This step integrates the Power BI tile into the model-driven app's dashboard, making the visualizations accessible within the app. 3. Ensure the dashboard is available to the appropriate security roles: This step ensures that the right users have access to the dashboard within the model-driven app. Sharing the dashboard with the appropriate user in the app is indeed important, but it is typically done after ensuring the dashboard is available to the appropriate security roles
upvoted 2 times
...
Sweden2022
9 months, 3 weeks ago
sounds correct.
upvoted 1 times
...
charles879987
1 year, 5 months ago
no. this is incorrect. step #3 add power bi tile is not correct. see correct steps: https://learn.microsoft.com/en-us/power-apps/user/add-powerbi-dashboards#embed--power-bi-tiles-on-your-personal-dashboard this is not correct steps: https://learn.microsoft.com/en-us/power-apps/maker/model-driven-apps/add-powerbi-visual
upvoted 3 times
D365Apprentice
1 year, 5 months ago
I agree with Charles, the answer in the question is correct
upvoted 1 times
...
...
...
RascarCapat
Highly Voted 3 years, 1 month ago
I just tryed it you cannot add a tile from a report. So you need to pin it to a Dashboard in Power BI first. So the answers are : 1. Pin 2. Create 3. Add
upvoted 15 times
DSM_LM
11 months, 1 week ago
doesn't make any sense. Pin it to what when you create the new dashboard in step 2?
upvoted 2 times
...
...
gina_the_boss
Most Recent 3 months, 1 week ago
1. Pin the report to a new dashboard in the PBI Service - The wording is confusing as always, but basically we need to create a dashboard from the report first. Then we also need to add the dashboard and report to a solution but since this is not provided in the options so we can skip it. 2. Create a personal dashboard in the MDA - "In the app designer on the command bar select Add page, select Dashboard, and then in the dashboard picker select Power BI dashboards." Why the heck they called it "personal dashboard" is beyond anyone's mind but let's just blame MS's typical confusing wordings. 3. Share the dashboard with the MDA's users - In order for the app's users to see the embedded dashboard, it needs to be shared with them as well. Complete ref can be found here: https://learn.microsoft.com/en-us/power-apps/maker/model-driven-apps/add-powerbi-visual
upvoted 2 times
...
MrEz
9 months ago
the answers are correct. the first and the last options make no sense to me. Pinning is more on the user side. Relating Dashboards to user roles, i have never seen that. remains the 3 in the middle. First create dashboard, add tiles to the dashboard (which is adding and NOT pinning!), finally share (if it is not a system dashboard).
upvoted 1 times
...
charles879987
1 year, 5 months ago
answer is missing a step. 1) Pin the Power BI report to a new dashboard in the Power BI service MISSING STEP: Add the dashboard and report to a solution IF YOU DON'T ADD, you won't see the Power BI dashboard. 2) Create a personal dashboard in the model-driven app (as Power BI dashboards are always personal dashboards (that can be shared)) 3) Add a power BI tile to the dashboard and select the Power BI dashboard in the app
upvoted 4 times
charles879987
1 year, 5 months ago
actually, answer is correct. Don't confuse pinning a Tile. https://learn.microsoft.com/en-us/power-apps/user/add-powerbi-dashboards with pinning a report here: https://learn.microsoft.com/en-us/power-apps/maker/model-driven-apps/add-powerbi-visual
upvoted 4 times
ammu12345
3 months, 3 weeks ago
As per the Microsoft document, answers given are correct
upvoted 1 times
...
...
...
FaresAyyad
1 year, 6 months ago
The answer should be: 1- pin 2- Create 3- Add Because the question didn't say to be available to users (Shared).
upvoted 2 times
...
Ikhalil
1 year, 7 months ago
1- Pin the Power BI report to a new dashboard in the Power BI service. 2- Add a Power BI tile to the dashboard and select the Power BI dashboard in the app. 3- Ensure the dashboard is available to the appropriate security roles.
upvoted 3 times
...
[Removed]
1 year, 11 months ago
Didn't know you could pin a report to a dashboard. I thought it was only allowed to pin a visual from the report to a dashboard.
upvoted 1 times
[Removed]
1 year, 11 months ago
Never mind, you can do it - https://learn.microsoft.com/en-us/power-apps/maker/model-driven-apps/add-powerbi-visual Since the question doesn't say anything about sharing, it's: pin create add
upvoted 4 times
...
...
AdyK
2 years, 1 month ago
Took the exam in August 2022. This question was on it.
upvoted 3 times
...
An01234
2 years, 2 months ago
I think the given answer are correct. https://docs.microsoft.com/en-us/power-bi/create-reports/service-dashboard-create https://docs.microsoft.com/en-us/power-apps/maker/model-driven-apps/add-powerbi-visual#create-a-new-model-driven-app-and-add-the-power-bi-embedded-report
upvoted 1 times
...
louieanderson
2 years, 3 months ago
In Exam 07/22/2022
upvoted 1 times
...
ManuB
2 years, 4 months ago
Personally, I would say : 1. Pin the Power BI report to a new dashboard in the Power BI service 2. Create a personal dashboard in the model-driven app (the personal dashboard will necessarily be a Power BI Dashboard where you have to chose the work space and dashboard name, so the action to add a power BI tile makes no sense) 3. Share the dashboard with appropriate users in the app (this is necessary because it's a personal dashboard, security roles have nothing to do in this area)
upvoted 2 times
ManuB
2 years, 4 months ago
Finally, it is not mentioned that the dashboard has to be shared and it is mentioned that the model driven app should display a power BI tile, I therefore join those who have selected the following solution: Pin the Report Create personal dashboard (Dynamics type) Add Power BI tile
upvoted 4 times
...
...
steffischmidt
2 years, 7 months ago
Pin the Report Create personal dashboard Add Power BI tile
upvoted 7 times
...
jkaur
2 years, 8 months ago
1) Pin the power BI report to a new dashboard in the Power BI service 2) Create a new Power BI personal dashboard in the model-driven app 3) Add a Power BI tile to the dashboard and select the power BI dashboard in the app
upvoted 7 times
...
burntsecondary
2 years, 10 months ago
This is a bit confusing but I believe the answers are correct. The link given seems to be what they are going for. The only issue is that they never mentioned sharing the report but it make sense that you would want to do that once you finished. NOTE: the question states that the Power BI report is ready to share so I would not include Pin the Power BI report to a new dashboard in the Power BI Service. https://docs.microsoft.com/en-us/powerapps/user/add-powerbi-dashboards
upvoted 7 times
burntsecondary
2 years, 10 months ago
I think I was wrong. Read up a little more on this link and re-read the question. https://docs.microsoft.com/en-us/power-bi/create-reports/service-dashboard-create I think everyone else is right: 1. Pin the power BI report to a new dashboard 2. Create Personal Dashboard 3. Add Power BI tile to the dashboard
upvoted 10 times
...
...
Mike2000
2 years, 10 months ago
Selected Answers 1) Pin the power BI report to a new dashboard in the Power BI service 2) Create a new Power BI personal dashboard in the model-driven app 3) Add a Power BI tile to the dashboard and select the power BI dashboard in the app on exam 10-Dec-2021. Pass with 870 marks
upvoted 11 times
...
aXon
2 years, 11 months ago
in exam 11/23/21
upvoted 2 times
...
