Exam AZ-102 topic 1 question 6 discussion

Actual exam question from Microsoft's AZ-102
Question #: 6
Topic #: 1
[All AZ-102 Questions]

HOTSPOT -
You have an Azure subscription named Subscription1.
You have a virtualization environment that contains the virtualization servers in the following table.

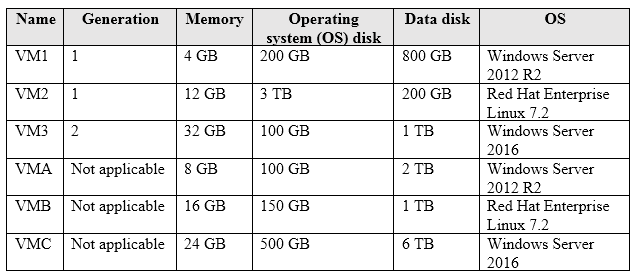

The virtual machines are configured as shown in the following table.

All the virtual machines use basic disks. VM1 is protected by using BitLocker Drive Encryption (BitLocker).
You plan to use Azure Site Recovery to migrate the virtual machines to Azure.
Which virtual machines can you migrate? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

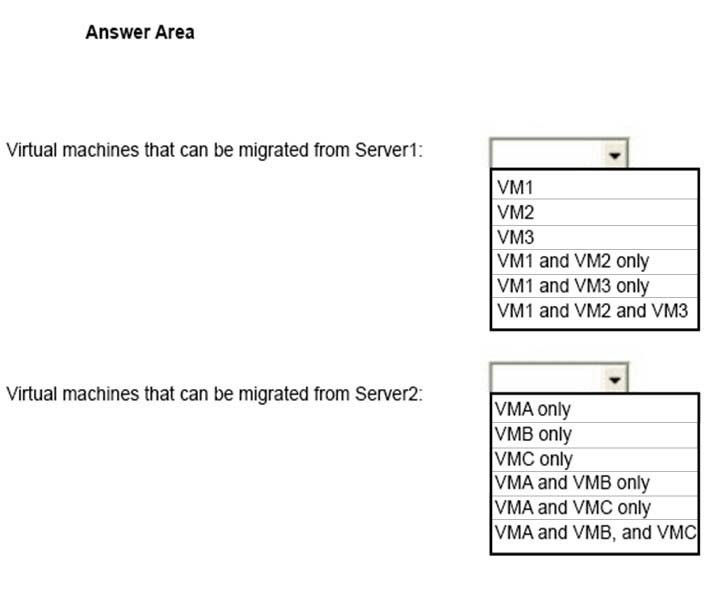

Hot Area:

Show Suggested Answer Hide Answer

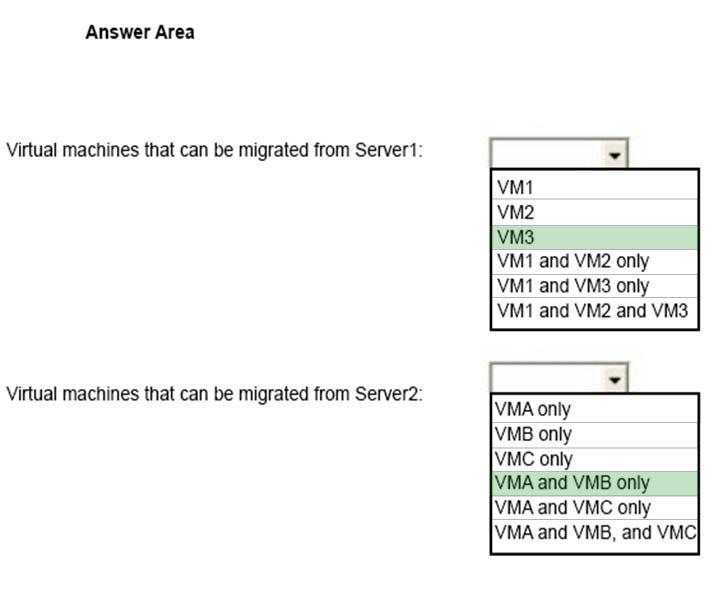

Suggested Answer:
Box 1: VM3 -
Not VM1 as Bitlocker is not supported. BitLocker must be disabled before you enable replication for a VM.
Not VM2 as maximum Operating system disk size for a generation VM is 2,048 GB.

Box 2: VMA and VMB only -
Not VMC as the max data disk size is 4,095 GB
References:
https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix https://docs.microsoft.com/en-us/azure/site-recovery/vmware-physical-azure-support-matrix#azure-vm-requirements
by Anirbanfiem at March 30, 2025, 8:25 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Anirbanfiem
4 weeks, 1 day ago
Explanation for the Answer: From Server1 (Hyper-V): VM1: Uses BitLocker. ASR requires BitLocker to be disabled before migration. ❌ VM2: Gen1 VM. RHEL 7.2 is supported. OS disk (3 TB) is ≤ 4 TB. ✅ VM3: Gen2 VM (supported by Azure). Windows Server 2016 is supported. ✅ From Server2 (VMware): VM4, VMB, VMC: All use basic disks (supported). OS disk sizes ≤ 4 TB. Windows Server 2012 R2, RHEL 7.2, and Windows Server 2016 are supported. ✅ How to Approach Similar Questions: Check ASR’s Supported Configurations: Review OS versions, disk types/sizes, and hypervisor requirements. Identify Blockers: BitLocker, unsupported OS, oversized disks. Map VM Properties to Requirements: Use tables to cross-reference VM specs with ASR’s documentation. This structured approach ensures you systematically eliminate non-compliant VMs and identify valid candidates for migration.
upvoted 1 times
...
