Exam JN0-663 topic 1 question 34 discussion

Actual exam question from Juniper's JN0-663
Question #: 34
Topic #: 1
[All JN0-663 Questions]

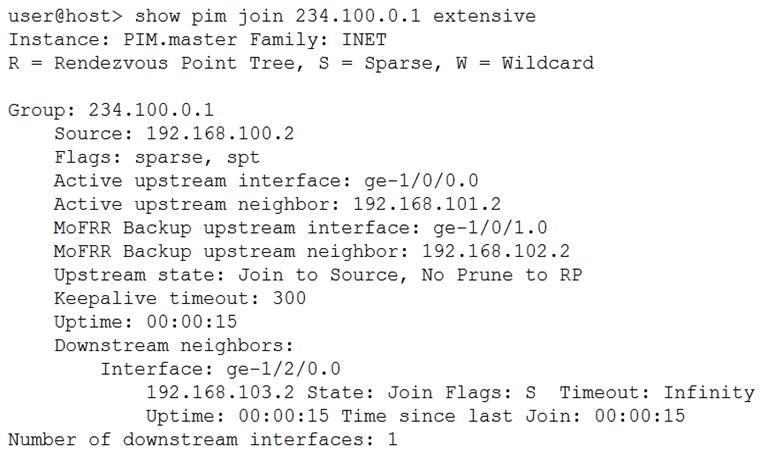

Which three statements are true about the show pim join output shown in the exhibit? (Choose three.)

  • A. This is a source-specific multicast stream.
  • B. The multicast receiver is still using the RP to receive the stream.
  • C. The multicast stream has been configured with a backup path to allow for fast reroute.
  • D. The multicast stream does not have an RP.
  • E. The shortest path to the source is through the RP.
Show Suggested Answer Hide Answer
Suggested Answer: BCE 🗳️
by anonymonkey at Aug. 14, 2021, 3:32 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
ztw3587t
1 year, 5 months ago
Selected Answer: CDE
A and B are a single answer and that one is wrong. Therefore the correct are C,D,E.
upvoted 1 times
...
mohdema
1 year, 12 months ago
The Internet Assigned Numbers Authority (IANA) has reserved the address range 232.0. 0.0 through 232.255. 255.255 for SSM applications and protocols.
upvoted 1 times
...
mohdema
1 year, 12 months ago
Selected Answer: BCE
PIM SSM introduces new terms for many of the concepts in PIM sparse mode. PIM SSM can technically be used in the entire 224/4 multicast address range, although PIM SSM operation is guaranteed only in the 232/8 range (232.0.0/24 is reserved). The new SSM terms are appropriate for Internet video applications and are summarized in Table 1.
upvoted 1 times
...
Banand
2 years, 4 months ago
Answer BCE agreed with ocean1908
upvoted 2 times
...
EBNPW9
2 years, 8 months ago
Selected Answer: ACE
A <= Source: 192.168.100.2; Flags: spt; Upstream state: Join to Source C <= MoFRR Backup upstream interface/neigbor E <= Upstream state: No Prune to RP Also see links in anonymonkey's comment.
upvoted 1 times
ptt
2 years, 8 months ago
100% not ACE, because the multicast section i got zero percent correct after i chose ACE for this question.
upvoted 2 times
...
...
oceans1908
2 years, 9 months ago
Selected Answer: BCE
Bce as the other two are wrong
upvoted 4 times
...
oceans1908
2 years, 9 months ago
A and D are wrong so that leaves BCE
upvoted 1 times
...
junos_wizz
2 years, 9 months ago
Selected Answer: BCE
agree with boyseven777
upvoted 3 times
...
boyseven777
2 years, 10 months ago
Selected Answer: BCE
not A - SSM address space is 232.0.0.0/8; not D - sparse mode implicate presence of RP
upvoted 3 times
austin_powers
2 years, 9 months ago
The answer is A, C and E. PIM SSM can technically be used in the entire 224/4 multicast address range
upvoted 1 times
...
...
Anniesyed1234
3 years ago
A , C and E
upvoted 2 times
...
ak_sisko
3 years, 3 months ago
Agree, ACE
upvoted 1 times
...
juanangel128
3 years, 3 months ago
Exactly, agree with you, correct answers are ACE.
upvoted 1 times
...
anonymonkey
3 years, 3 months ago
ACE https://www.juniper.net/documentation/us/en/software/junos/multicast/topics/ref/command/show-pim-join.html https://kb.juniper.net/InfoCenter/index?page=content&id=KB21903 https://kb.juniper.net/InfoCenter/index?page=content&id=KB21586&actp=METADATA
upvoted 3 times
...
