Exam JN0-663 topic 1 question 22 discussion

Actual exam question from Juniper's JN0-663
Question #: 22
Topic #: 1
[All JN0-663 Questions]

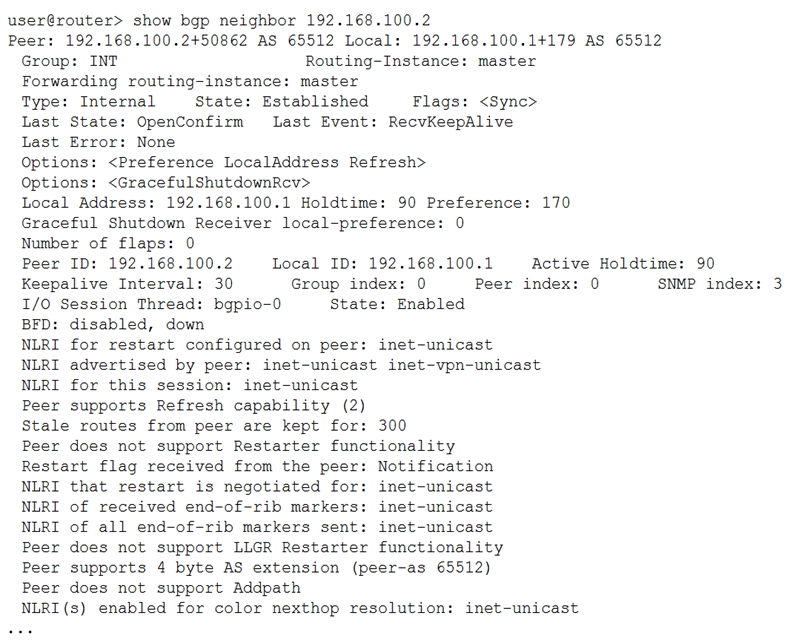

Referring to the exhibit, the local BGP router is receiving IPv4 routes from the BGP neighbor, but it is not receiving L3 VPN routes from the BGP neighbor.
Which two actions should you take to solve this problem? (Choose two.)

  • A. Configure the family inet-vpn unicast statement on the BGP neighbor.
  • B. Configure the family inet unicast statement on the local BGP router.
  • C. Configure the family inet-vpn unicast statement on the local BGP router.
  • D. Configure the family inet unicast statement on the BGP neighbor.
Show Suggested Answer Hide Answer
Suggested Answer: BC 🗳️

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Juniperguy
Highly Voted 3 years, 3 months ago
Agree. BC
upvoted 7 times
...
TriviumGG
Most Recent 1 year, 3 months ago
Selected Answer: BC
A and D is incorrect, as the output of NLRI clearly shows that the neighbor has the relevant commands configured.
upvoted 1 times
...
NetworkGuy420
1 year, 7 months ago
Selected Answer: BC
B and C The output clearly shows how the remote peer is advertising inet-unicast and inet-vpn-unicast. So this basically discards answers A and D for changes in the remote end.
upvoted 1 times
...
NetworkGuy420
1 year, 7 months ago
B and C. The output shows how the peer is advertising inet-vpn-unicas and inet-unicast. Just that discards changes in the remote end, so A and D are discarded.
upvoted 1 times
...
mohdema
1 year, 11 months ago
Selected Answer: BC
It is clearly shown in the exhibit that inet-unicast is the only NLRI enabled locally, so inet-vpn-unicast needs to be configured too. However, when you do this, it overrides the default NLRI for a peer which is inet-unicast, resulting in only inet-vpn-unicast being advertised to the peer. To continue using inet-unicast this must now also be configured explicitly.
upvoted 1 times
...
Panadol
2 years, 4 months ago
The combination AD or BC both will solve the problem. The point is you need to enable both address families either at BGP(global) , Group or Neighbor level.
upvoted 1 times
...
EBNPW9
2 years, 8 months ago
Selected Answer: BC
abcxyz12 is right. Totally agree.
upvoted 2 times
...
oceans1908
2 years, 9 months ago
B,C peer router send both families
upvoted 4 times
...
abcxyz12
3 years, 4 months ago
This should be A,B. It is clearly shown in the exhibit that inet-unicast is the only NLRI enabled locally, so inet-vpn-unicast needs to be configured too. However, when you do this, it overrides the default NLRI for a peer which is inet-unicast, resulting in only inet-vpn-unicast being advertised to the peer. To continue using inet-unicast this must now also be configured explicitly.
upvoted 2 times
abcxyz12
3 years, 4 months ago
Sorry, B,C.
upvoted 13 times
...
...
