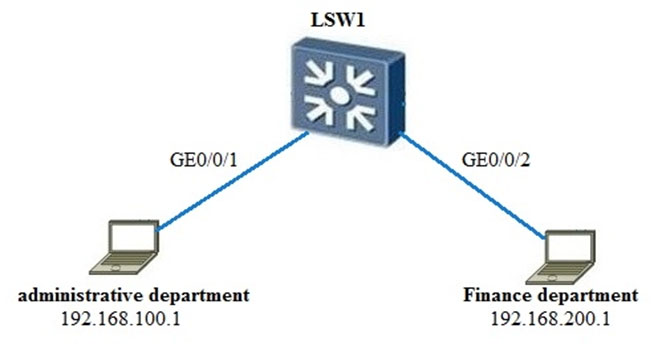

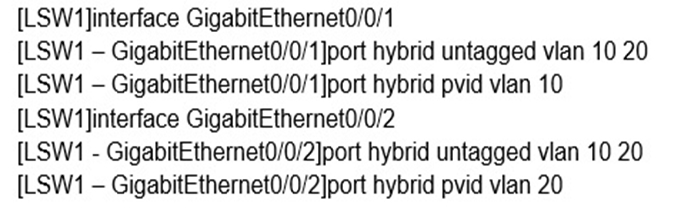

Refer to the graphic. GE0/0/1 and GE0/0/2 on the switch are configured as hybrid interfaces. Which of the following statements are true? (Choose all that apply)
A.
The administrative department and the finance department cannot communicate with each other because the VLANs of the two departments are different.
B.
The data frames sent by the administrative department carry tagged VLAN 20 on the switch.
C.
On the switch, the data frames sent by the finance department carry tagged VLAN 20.
D.
The switch can be a Layer 2 or Layer 3 switch because communications do not need to be transmitted through a Layer 3 gateway.
E.
If GE0/0/1 and GE0/0/2 on the switch are changed to trunk ports, the administrative department and finance department can communicate with each other.
The correct answers are A and C, they can't be both in the Vlan 20, because one is tagged to be in Vlan 10 and just allows packets from both Vlans. But without Subinterface/Layer 3 Function, communication between Vlan 10 and 20 isn't able.
In the topology, vlan 10 and vlan 20 are both untagged. So, the correct answer should be A. They cannot ping because they are in a diferent Broadcast domain.
As may understanding of VRP, there is no such commando untagged an a list of vlan, which would be supported. You can port vlan-stacking untagged stack-vlan or with protocol based vlan have two vlans untagged, anything else is in VRP xxx.R010 not possible. The hybrid port would ignore the untagged assignment out of my understanding and would use the default configuration of the native vlan.
In the topology, vlan 10 and vlan 20 are both untagged. So, the correct answer should be A. They cannot ping because they are in a diferent Broadcast domain.
pvid of g0/0/1 is 10, the tag on the data coming from this interface should be tagged by 10 not 20, and Switch layer 3 allows intervlan communication using VLANIF
correct answers should be C D in my opinion
the port hybrid pvid vlan_id command insure that an untagged frame from end device are tagged with vlan id equal to pvid of the hybrid port.
B would be correct if the vlan was 10
upvoted 1 times
...
