Exam NSE4_FGT-7.0 topic 1 question 56 discussion

Actual exam question from Fortinet's NSE4_FGT-7.0

Question #: 56
Topic #: 1

Refer to the exhibits.

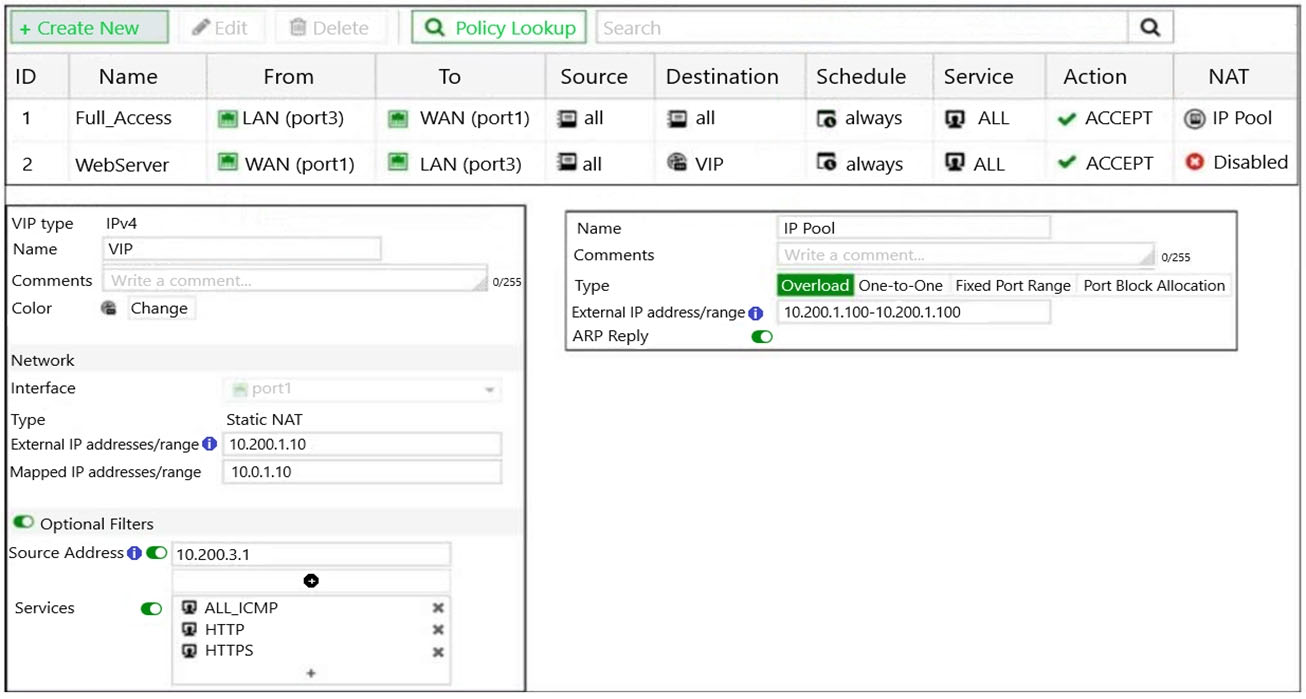

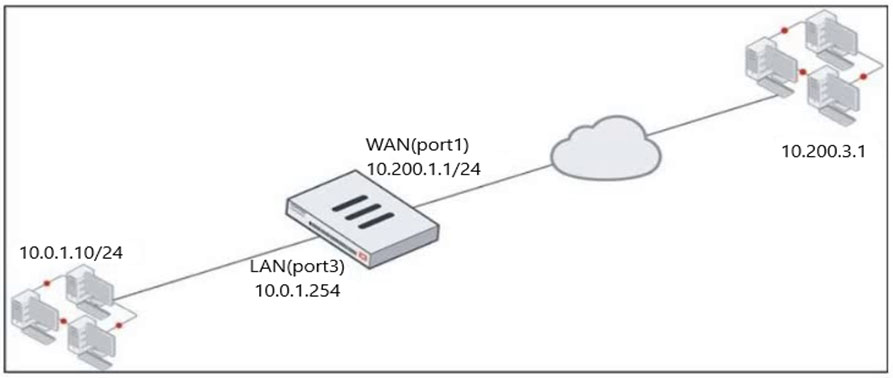

The exhibits contain a network diagram, virtual IP, IP pool, and firewall policies configuration.
Exhibit A.

Exhibit B.

The WAN (port1) interface has the IP address 10.200.1.1/24.
The LAN (port3) interface has the IP address 10.0.1.254/24.
The first firewall policy has NAT enabled using IP Pool.
The second firewall policy is configured with a VIP as the destination address.
Which IP address will be used to source NAT the internet traffic coming from a workstation with the IP address 10.0.1.10?

A. 10.200.1.100
B. 10.200.1.10
C. 10.200.1.1
D. 10.200.3.1

Show Suggested Answer

Suggested Answer: A 🗳️

by Kutchek at Sept. 19, 2022, 7:58 a.m.

Comments

Submit Cancel

JT20

Highly Voted 8 months ago

Selected Answer: A

Policy 1 is applied on outbound (LAN-WAN) and policy 2 is applied on inbound (WAN-LAN). question is asking SNAT for outbound traffic so policy 1 will take place and NAT overload is in effect.

upvoted 6 times

...

doncacciato62

Most Recent 6 months, 1 week ago

Is it correct to say that if you had the REAL (Mapped IP) of 10.0.1.10 as the source in the first rule instead of "all" the SNAT would use te VIPs address of 10.200.1.10 ?

upvoted 2 times

Dylon

4 months, 3 weeks ago

No because it is outbound traffic. If it was inbound traffic then it would us the VIPs address.

upvoted 1 times

...

Kutchek

10 months ago

Selected Answer: A

traffic coming from a workstation has unspecified target (not the Webserver) so- policy 1 and ip overload matches
