exam questions

Exam NSE7_EFW-6.4 All Questions

View all questions & answers for the NSE7_EFW-6.4 exam

Exam NSE7_EFW-6.4 topic 1 question 23 discussion

Actual exam question from Fortinet's NSE7_EFW-6.4
Question #: 23
Topic #: 1
[All NSE7_EFW-6.4 Questions]

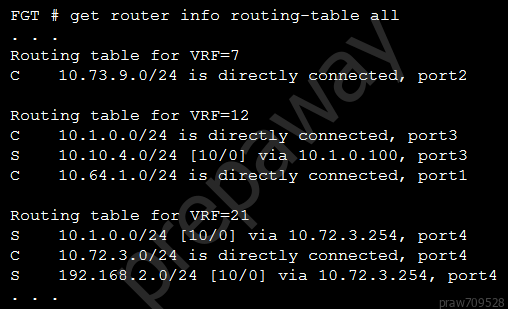

Refer to the exhibit, which shows a partial routing table.

Assuming all the appropriate firewall policies are configured, which two pings will FortiGate route? (Choose two.)

  • A. Source IP address: 10.73.9.10, Destination IP address: 10.72.3.15
  • B. Source IP address: 10.72.3.52, Destination IP address: 10.1.0.254
  • C. Source IP address: 10.10.4.24, Destination IP address: 10.72.3.20
  • D. Source IP address: 10.1.0.10, Destination IP address: 10.64.1.52
Show Suggested Answer Hide Answer
Suggested Answer: BD 🗳️
Only the source/destination pairs within the same VRF will be able to ping each other.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
ni
2 years, 11 months ago
B & D VRF
upvoted 2 times
...
leonisc
3 years ago
B&D, for the ping to work source address interface must be directly connected and destination address should be on the routing table.
upvoted 1 times
...
Jamati
3 years, 1 month ago
B & D Because of the virtual routers only B & D prefixes within the same VRF will be able to reach each other
upvoted 1 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
A voting comment increases the vote count for the chosen answer by one.

Upvoting a comment with a selected answer will also increase the vote count towards that answer by one. So if you see a comment that you already agree with, you can upvote it instead of posting a new comment.
