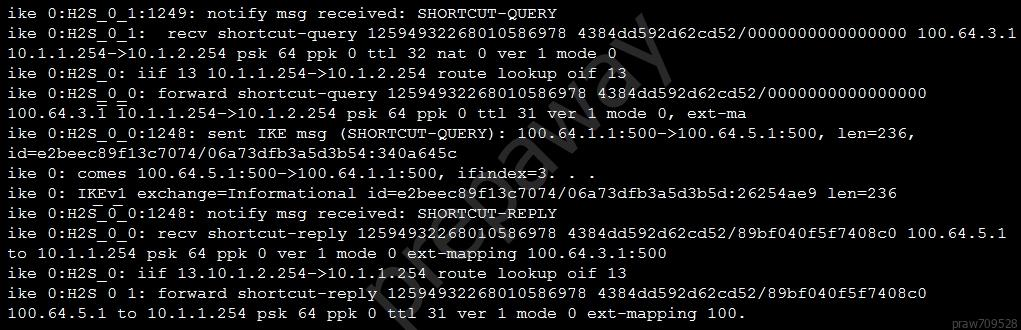

Refer to the exhibit, which contains partial output from an IKE real-time debug. Based on the debug output, which phase 1 setting is enabled in the configuration of this VPN?
Imagine 2 spokes and a hub.
First spoke sends shortcutQuery to the HUB asking for shorter path for communication with the Spoke2. The hub forwards this Query to Spoke2. Spoke2 replies with shortcutOfferMSG (agreeing he is ok to start shorter communication. This MSG goes to the hub and the Hub forwards it to Spoke11.
If you are the hub you will see all the messages that are exchanged from the above (as it is in the example)
So the correct answer is auto-discover sender (B)
Remember:

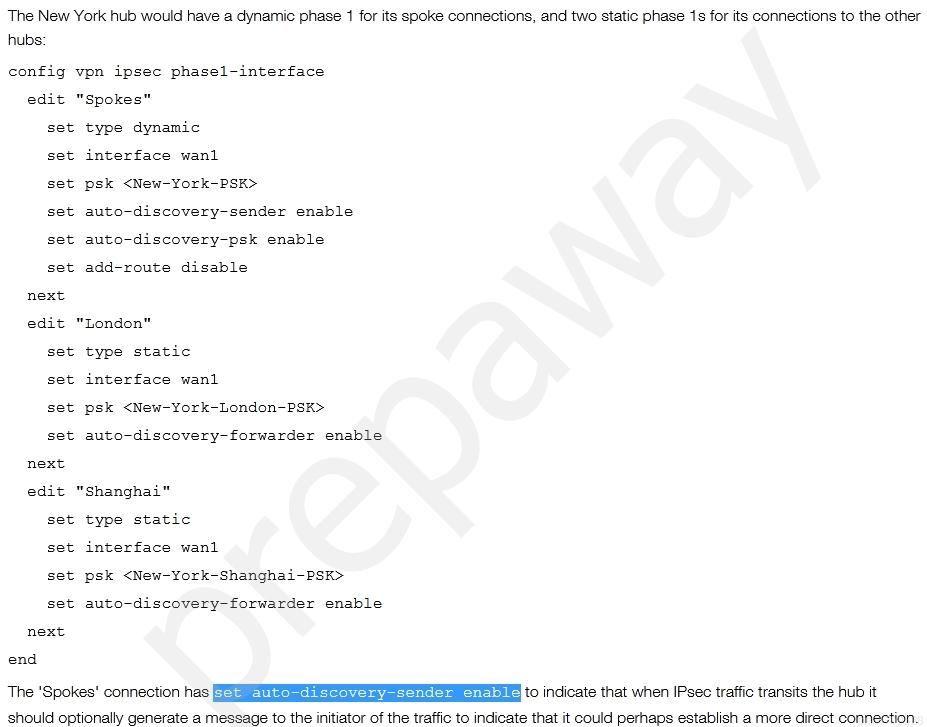

Hubs (to spoke) has auto-discover sender
Spoke (to hub) has auto-discover reciever
Hub (to) hub has auto-discover forwarder
sorry, it's HUB, which has set auto-discovery-sender (= send shortcut offer). Offer is not listed here, but had to be sent before, so C is correct.
On Spoke is than Set auto-discovery-reciever (= Recife shortcut offer) configured
