Exam NSE4_FGT-6.4 topic 1 question 49 discussion

Actual exam question from Fortinet's NSE4_FGT-6.4
Question #: 49
Topic #: 1
[All NSE4_FGT-6.4 Questions]

Refer to the exhibit.

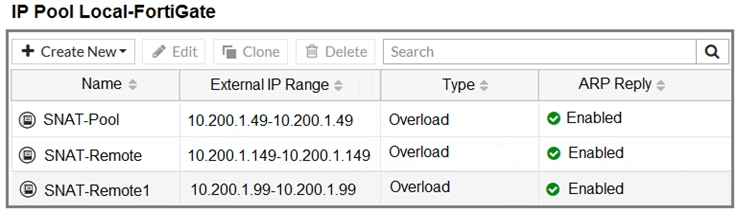

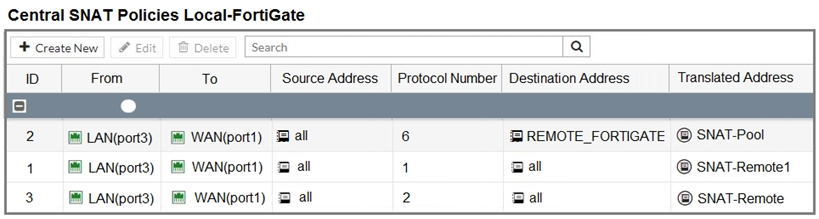

The exhibit contains a network diagram, central SNAT policy, and IP pool configuration.
The WAN (port1) interface has the IP address 10.200.1.1/24.
The LAN (port3) interface has the IP address 10.0.1.254/24.
A firewall policy is configured to allow to destinations from LAN (port3) to WAN (port1).
Central NAT is enabled, so NAT settings from matching Central SNAT policies will be applied.
Which IP address will be used to source NAT the traffic, if the user on Local-Client (10.0.1.10) pings the IP address of Remote-FortiGate (10.200.3.1)?

  • A. 10.200.1.149
  • B. 10.200.1.1
  • C. 10.200.1.49
  • D. 10.200.1.99
Show Suggested Answer Hide Answer
Suggested Answer: D 🗳️
by FeNadege at April 5, 2021, 8:02 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Lionardo
Highly Voted 4 years ago

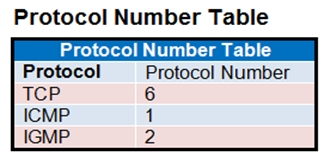

D is correct. Ping is ICMP protocol - protocol number = 1 => SNAT policy ID 1 is policy that used. => Translated address is "SNAT-Remote1" that 10.200.1.99
upvoted 29 times
MetDaci
3 years, 1 month ago
Good explanation, thank you!
upvoted 2 times
...
...
SandroAlex
Most Recent 3 years, 1 month ago
Selected Answer: D
D é a verdadeira
upvoted 1 times
...
ItVik
3 years, 1 month ago
This question was changed for me, Instead of SNAT. It was with NAT on outgoing traffic with IP Pool configured and Inbound with VIP configured. The question has been asked what will be the NAT IP when traffic will go out to the internet from the machine inside the network. So choose the option of IP from IP Pool congigured. = 10.200.0.10 (i think may be i forget the IP but just check out the IP pool)
upvoted 1 times
...
Ragnar77
3 years, 1 month ago
Selected Answer: D
ping is ICM
upvoted 1 times
...
davidone
4 years ago
D is correct.
upvoted 4 times
...
FeNadege
4 years ago
D is Correct
upvoted 3 times
...
