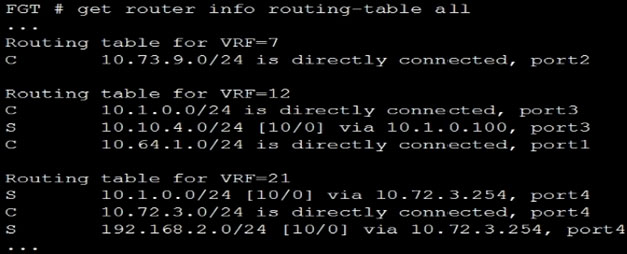

Refer to the exhibit, which contains a partial routing table. Assuming all the appropriate firewall policies are configured, which two pings will FortiGate route? (Choose two.)
A.
Source IP address: 10.72.3.52, Destination IP address: 10.1.0.254
B.
Source IP address: 10.73.9.10, Destination IP address: 10.72.3.15
C.
Source IP address: 10.10.4.24, Destination IP address: 10.72.3.20
D.
Source IP address: 10.1.0.10, Destination IP address: 10.64.1.52
Correct - A and D according NSE7_EF_6.2 Manual p.158
A. 10.72.3.52 and 10.1.0.254 are both part of VRF 21
D. 10.1.0.10 and 10.64.1.52 are both part of VRF 12
