Exam 101 topic 1 question 226 discussion

Actual exam question from F5's 101

Question #: 226
Topic #: 1

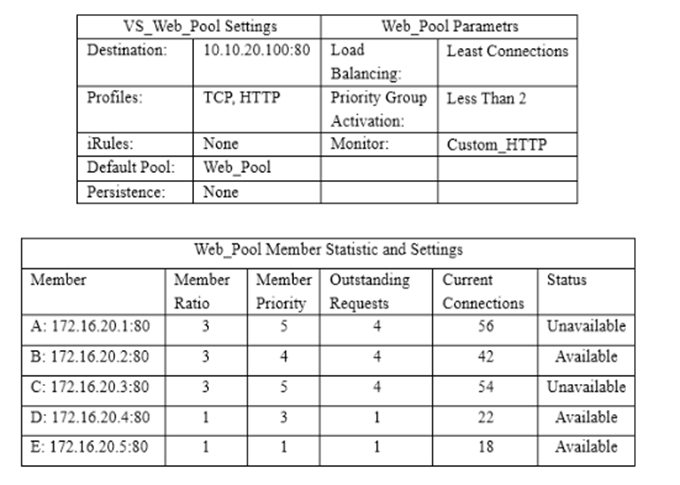

A virtual server is defined per the charts. The last five client connections were to members C, D, A, B, B. Given the conditions shown in the above graphic, if a client with IP address 205.12.45.52 opens a connection to the virtual server, which member will be used for the connection?

A. 172.16.20.1:80
B. 172.16.20.2:80
C. 172.16.20.3:80
D. 172.16.20.4:80
E. 172.16.20.5:80

Show Suggested Answer

Suggested Answer: D 🗳️

by flavioaragon at Feb. 21, 2021, 6:53 p.m.

Comments

Submit Cancel

juantron

2 years, 5 months ago

D, as dkubo says, because "less than 2" means you only can select two active members with higher priority.

upvoted 1 times

abdelrahmanismail239

8 months, 3 weeks ago

Less than means the minimum number of members that must be available in one priority group before system direct traffic to lower priority group members so I think answer Is E not D

upvoted 1 times

...

dkubo

3 years, 1 month ago

The priority group is set to less than 2. The status shows that A and C are unavailable, so the packet is forwarded to B and D. Comparing these two, D is the one with the Least Connections.

upvoted 2 times

KZM

1 year, 2 months ago

Could you please explain to me why option "E" is excluded in comparison?

upvoted 1 times

...

kokodoko

3 years, 2 months ago

The load balancing method is Least Connections, which choose the member that has the least number of active connections. In this case, I think the true answer is E, because this member has least number of current connections.

upvoted 3 times

...

flavioaragon

3 years, 4 months ago

B has no priority and received only two connections? Shouldn't I get two more?

upvoted 1 times

...
