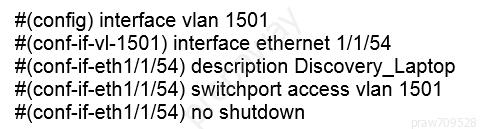

Refer to the Exhibit. A Network administrator is failing to discover a PowerStore T system using the PowerStore Discovery Utility. What might be the issue?
A.
Discovery network uses only native VLAN
B.
Port 54 needs to be enabled
C.
Dedicated port needs to be used for discovery network
Answer B. Powerstore implementation page 63 - Powerstore T management switch configuration
Need to follow interface vlan 1501 with "no shutdown" to enable the port as Hideo said.
Interface VLAN 1501 is only created but not enabled. "interface vlan 1501" has to be followed by "no shutdown". Missing "no shutdown" for VLAN 1501 makes interface 1/1/54 virtually down.
Would answered A :
"If not using the recommended direct-connect method, you can discover PowerStore T and
PowerStore X model appliances running PowerStoreOS 1.0.3 and higher using a predefined static IP address. The user must set their workstation to an IP address in the 169.254.0.x/16 range which has access to the same network (untagged/native VLAN) that the PowerStore management ports are plugged into"
upvoted 1 times
...
Log in to ExamTopics
Sign in:
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
A voting comment increases the vote count for the chosen answer by one.
Upvoting a comment with a selected answer will also increase the vote count towards that answer by one.
So if you see a comment that you already agree with, you can upvote it instead of posting a new comment.
NEMESIS24
1 year, 6 months agoAlddd
1 year, 11 months agoNjulien
2 years, 4 months agorilovi
2 years, 4 months agoHideo
2 years, 5 months agoIwork4IBM
2 years, 10 months agoexamsaxians
2 years, 11 months ago
