Should be B:
"Ports in a switched fabric can be one of the following types:
N_Port: An end point in the fabric. This port is also known as the node port. Typically, it is a host port (HBA) or a storage array port connected to a switch in a switched fabric.
E_Port: A port that forms the connection between two FC switches. This port is also known as the expansion port. The E_Port on an FC switch connects to the E_Port of another FC switch in the fabric through ISLs.
F_Port: A port on a switch that connects an N_Port. It is also known as a fabric port.
G_Port: A generic port on a switch that can operate as an E_Port or an F_Port and determines its functionality automatically during initialization.
Information Storage and Management . Wiley. Kindle Edition.

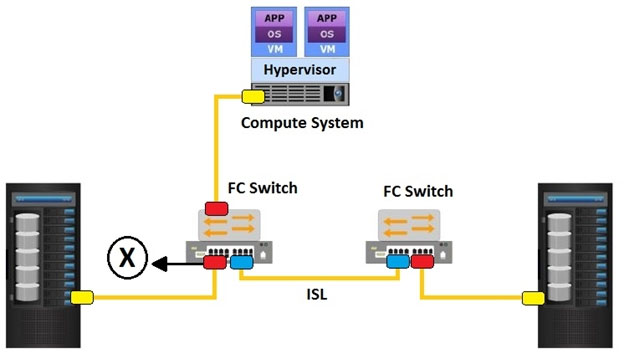

In the diagram,
1) F_Ports are marked in Red. Remember, all ports at the FC Switch/Fabric are F ports.
2) N_Ports are marked in Yellow. The ones going towards F_Ports on the client/servers are N_Ports
3) E_Ports are marked in yellow. Extension Ports are switch-to-switch.
F_Port = Fabric port ("source" port that connects to an N_Port )
N_Port = Node port (Destination port, e.g. the storage System or the hypervisor)
E_Port = Expansion port (Connect to another switch)
G_Port = Generic port (Can be used as either F or E)
