Exam N10-007 topic 1 question 563 discussion

Actual exam question from CompTIA's N10-007

Question #: 563
Topic #: 1

SIMULATION -

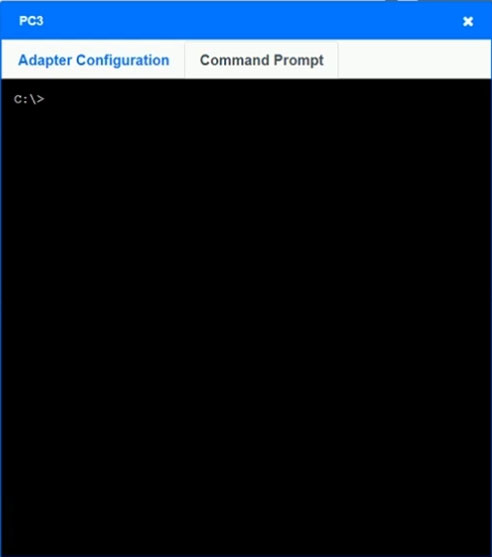

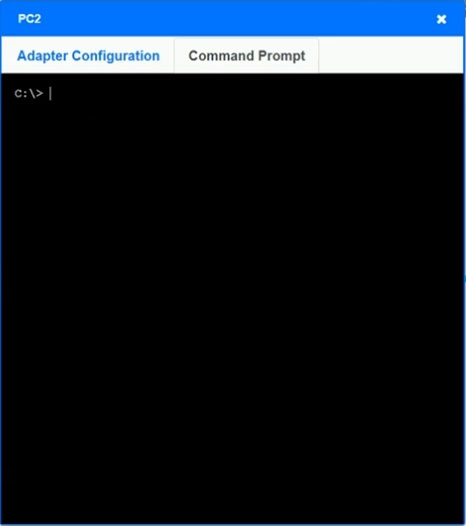

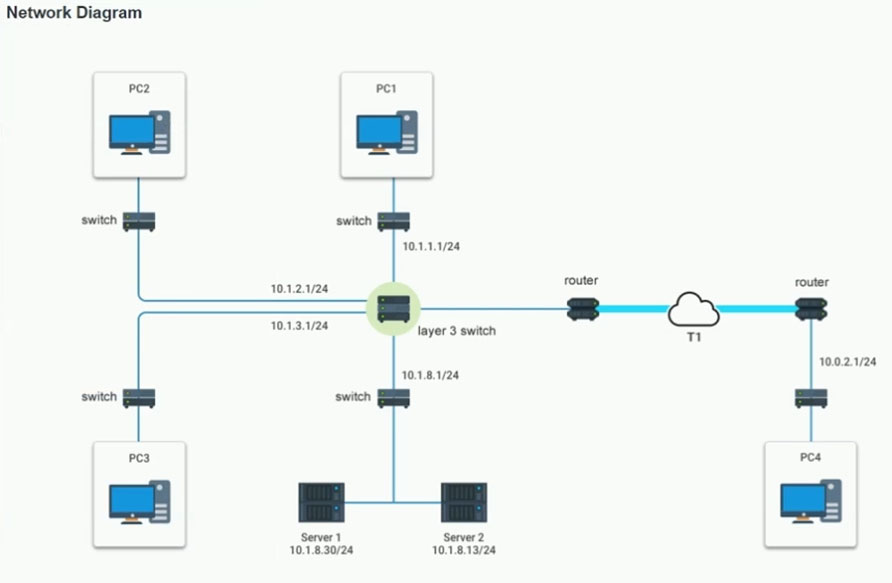

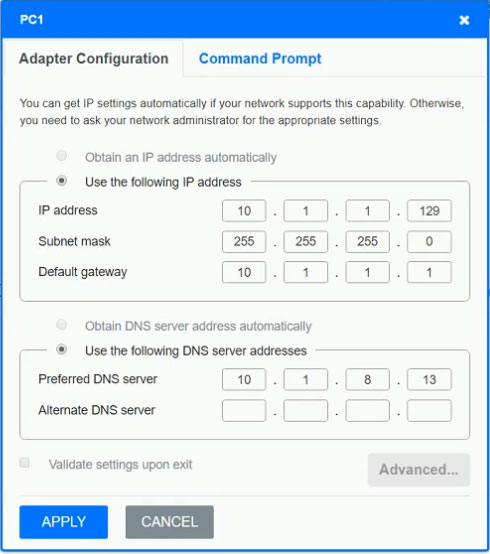

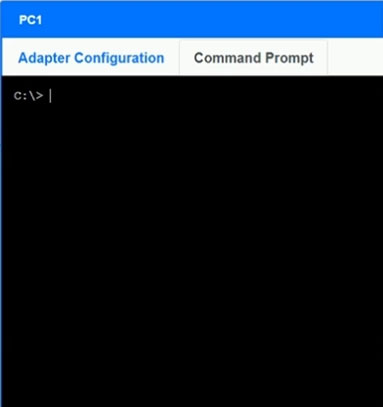

After recent changes to the pictured network, several users are unable to access the servers. Only PC1, PC2, PC3, and PC4 are clickable and will give you access to the command prompt and the adapter configuration tabs.

INSTRUCTIONS -
Verify the settings by using the command prompt, after making any system changes.
Next, restore connectivity by making the appropriate changes to the infrastructure.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

Show Suggested Answer

Suggested Answer: See explanation below.

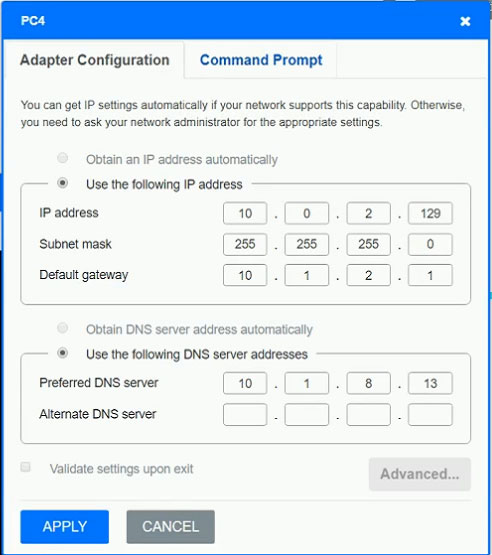

On PC3, change the subnet mask to 255.255.255.0. When it is set to 255.255.255.128, then the PC with a .129 address will not be on the same subnet as the default gateway which is .1 On PC4, change the default gateway to 10.0.2.1. It has been incorrectly set as 10.1.2.1.

by Noman205 at Sept. 23, 2021, 4:27 p.m.

Comments

Submit Cancel

Kaz12349

1 year, 8 months ago

ipconfig gives you the setting on that device, the problem is that some pcs cant see the servers so shouldnt you ping the servers from each machine to make sure you can rather than check the settings have updated on each machine?

upvoted 1 times

...

gawal

3 years, 5 months ago

Doesn't the question also to verify settings, using command line black box. So, use command: ipconfig /all

upvoted 2 times

...

Noman205

3 years, 7 months ago

is the answer correct?

upvoted 1 times

aquilius

3 years, 5 months ago

Looks to be!

upvoted 1 times

...
