Exam 1Y0-402 topic 1 question 12 discussion

Actual exam question from Citrix's 1Y0-402
Question #: 12
Topic #: 1
[All 1Y0-402 Questions]

Scenario: A Citrix Architect needs to design a new XenApp and XenDesktop environment. While deploying Optimal HDX Routing for the customer, the architect makes the following configurations:
✑ Authentication Gateway - AuthGW "" Logon.workspace.com - Authentication only
✑ New York Gateway - NYCGW "" Nycgw.workspace.com - HDX Routing only
✑ San Francisco Gateway - SFOGW "" Sfogw.workspace.com - HDX Routing only

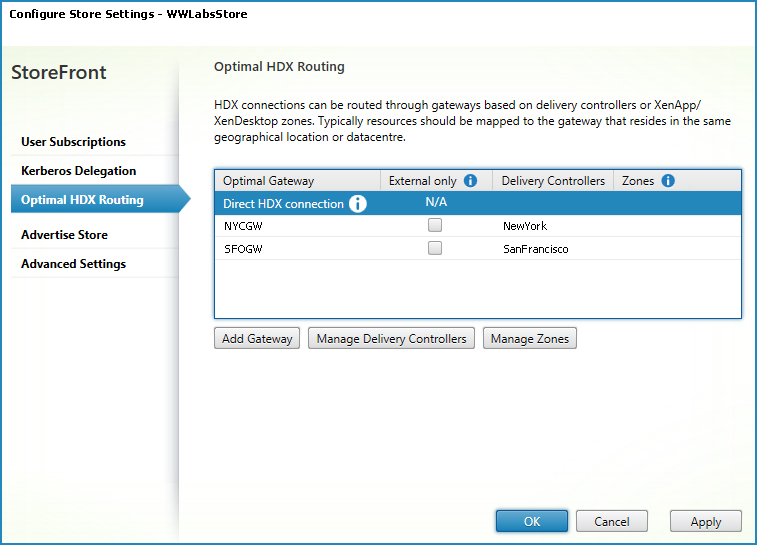

Click the Exhibit button to view further details about the configuration.

Upon investigation of the load on the NetScalers, the architect determines that both internal and external HDX traffic flow through the NetScaler Gateways and the
NetScalers are running at capacity.
Which PowerShell commandlet and parameter can help the architect address this issue until more NetScaler resources are procured?

  • A. Set-DSOptimalGatewayForFarms -onDirectAccess=false
  • B. Set-STFCitrixAGBasicOptions -onDirectAccess=true
  • C. Set-STFCitrixAGBasicOptions -onDirectAccess=false
  • D. Set-DSOptimalGatewayForFarms -onDirectAccess=true
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️
by bicycle at March 3, 2020, 3:19 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
ijhoojhisdojihoij
Highly Voted 4 years, 7 months ago
A is correct. If the netscalers are at capacity, you want to offload them by disabling HDX optimal gateway. -EnabledOnDirectAccess (Boolean)—Set to true: ensures that when local users on the internal network log on to StoreFront directly, connections to their resources are still routed through the optimal appliance defined for the farm. Set to false: connections to resources are not routed through the optimal appliance for the farm unless users access StoreFront through a Citrix Gateway.
upvoted 8 times
...
d0bermannn
Most Recent 2 years, 9 months ago
Selected Answer: A
A. Set-DSOptimalGatewayForFarms -onDirectAccess=false
upvoted 1 times
...
crumpet
4 years, 3 months ago
The answer is D. Set to true: ensures that when local users on the internal network log on to StoreFront directly, connections to their resources are still routed through the optimal appliance defined for the farm. Set to false: connections to resources are not routed through the optimal appliance for the farm unless users access StoreFront through a NetScaler Gateway. https://developer-docs.citrix.com/projects/delivery-controller-sdk/en/latest/StorefrontService/Set-SfOptimalGateway/
upvoted 1 times
crumpet
4 years, 3 months ago
Apologies, I meant A :)
upvoted 4 times
...
...
Citrix123
4 years, 7 months ago
To reduce resource usages, internal traffic should not be routed to gateway Optimal HDX Routing need to be disabled for internal resources (External Only. "If you select the External Only check box, it is equivalent to -enabledOnDirectAccess = false." (https://docs.citrix.com/en-us/storefront/current-release/set-up-highly-available-multi-site-stores.html) Answer should be A
upvoted 4 times
...
bicycle
4 years, 8 months ago
D https://docs.citrix.com/en-us/storefront/current-release/set-up-highly-available-multi-site-stores.html
upvoted 1 times
...
bicycle
4 years, 8 months ago
D https://developer-docs.citrix.com/projects/delivery-controller-sdk/en/latest/StorefrontService/Set-SfOptimalGateway/
upvoted 1 times
...
