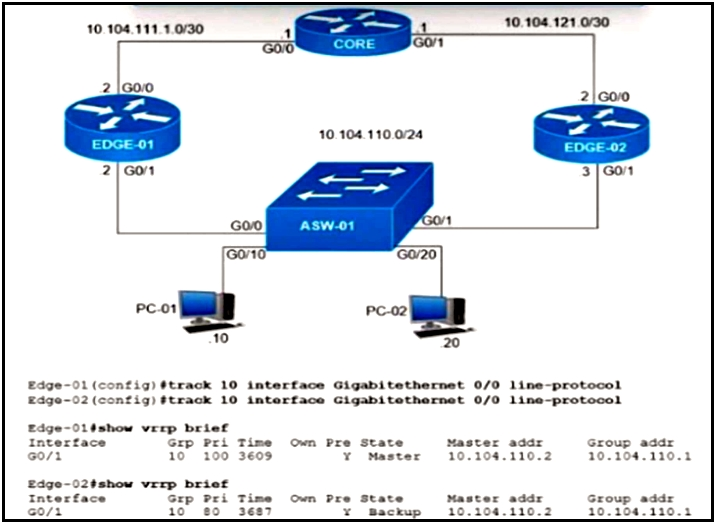

Refer to the exhibit. Object tracking has been configured for VRRP-enabled routers Edge-01 and Edge-02. Which commands cause Edge-02 to preempt Edge-01 in the event that interface G0/0 goes down on Edge-01?
A.
Edge-01(config)#interface G0/1 Edge-01(config-if)#vrrp 10 track 10 decrement 30
B.
Edge-02(config)#interface G0/1 Edge-02(config-if)#vrrp 10 track 10 decrement 30
C.
Edge-02(config)#interface G0/1 Edge-02(config-if)#vrrp 10 track 10 decrement 10
D.
Edge-01(config)#interface G0/1 Edge-01(config-if)#vrrp 10 track 10 decrement 10
A is correct.
Now the pri is 100 for the port g0/1 on E1. When we 30 decremnt it, it becomes 70 which is lower than the E2 interface priority which is now 80.
cisco_R3(config-subif)#do s run interface Ethernet0/0.70
Building configuration...
Current configuration : 229 bytes
!
interface Ethernet0/0.70
description vrf_RED
encapsulation dot1Q 70
ip vrf forwarding RED
ip address 10.111.12.1 255.255.255.0
ip policy route-map RED_TO_GLOBAL
vrrp 11 ip 10.111.12.254
vrrp 11 track 2 decrement 30
end
cisco_R3(config-subif)#do s vrrp
Ethernet0/0.70 - Group 11
State is Master
Virtual IP address is 10.111.12.254
Virtual MAC address is 0000.5e00.010b
Advertisement interval is 1.000 sec
Preemption enabled
Priority is 70
Track object 2 state Down decrement 30
Master Router is 10.111.12.1 (local), priority is 70 <<<<<<<<<<<<<<
Master Advertisement interval is 1.000 sec
Master Down interval is 3.609 sec
cisco_R3(config-subif)#
cisco_R3(config-subif)#
cisco_R3(config-subif)#int loo1
cisco_R3(config-if)#no shu
cisco_R3(config-if)#
*Dec 22 17:46:10.897: %TRACK-6-STATE: 2 interface Lo1 line-protocol Down -> Up
cisco_R3(config-if)#
*Dec 22 17:46:12.903: %LINK-3-UPDOWN: Interface Loopback1, changed state to up
*Dec 22 17:46:13.904: %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback1, changed state to up
cisco_R3(config-if)#do s vrrp
Ethernet0/0.70 - Group 11
State is Master
Virtual IP address is 10.111.12.254
Virtual MAC address is 0000.5e00.010b
Advertisement interval is 1.000 sec
Preemption enabled
Priority is 100
Track object 2 state Up decrement 30
Master Router is 10.111.12.1 (local), priority is 100
Master Advertisement interval is 1.000 sec
Master Down interval is 3.609 sec
cisco_R3(config-if)#
