Exam 300-209 topic 1 question 253 discussion

Instructions -
✑ Enter CLI commands on the ASA and Branch router to verify network operation and answer the multiple-choice questions.
✑ THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.
✑ Click on the devices or the lower menu bar to gain access to the console of that device. No console or enable passwords are required.
✑ Not all CLI commands are available for this exercise.
✑ To access the multiple-choice questions, click on Questions tab and then the numbered boxes on the left of the panel to view each question.
There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.


Scenario -
You are the senior network security administrator for your organization. Recently and junior engineer configured a site-to-site IPSec VPN connection between your headquarters Cisco ASA and a remote branch office.
You are now tasked with verifyng the IKEv1 IPSec installion to ensure it was properly configured according to designated parameters. Using the CLI on both the
Cisco ASA and branch ISR, verify the IPsec configuration is properly configured between the two sites.
NOTE: the show running-config command cannot be used for this exercise.

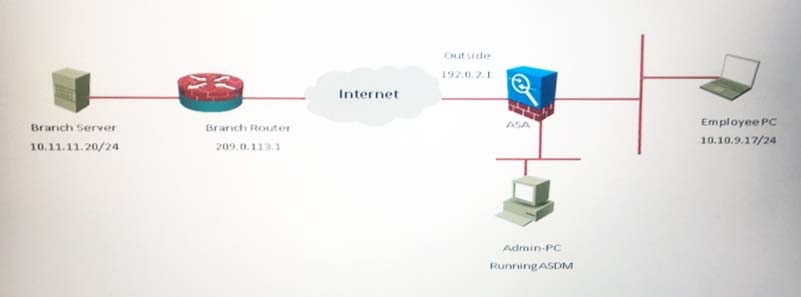

Topology -

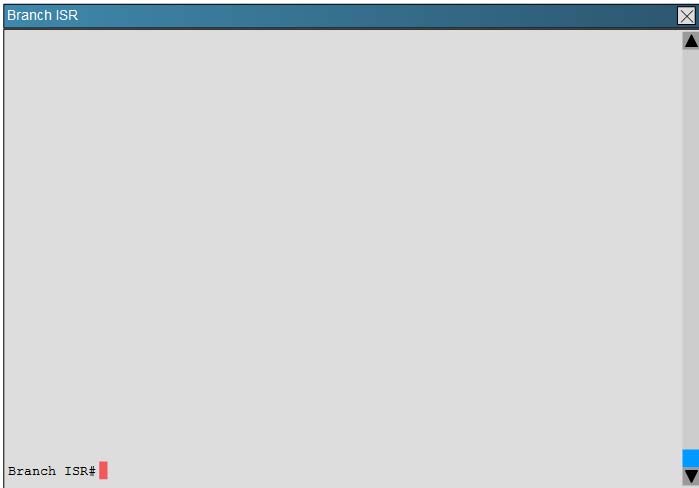

Branch ISR -

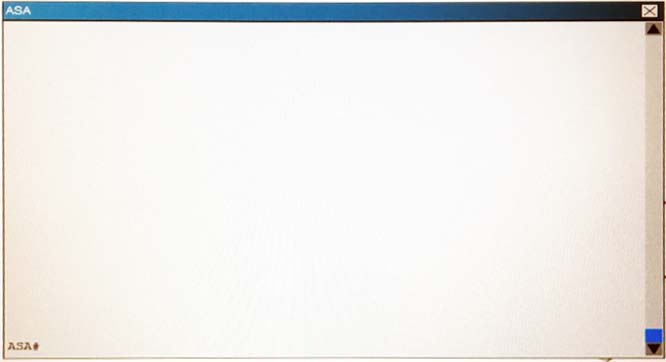

ASA -

What is the name of the transform set being used on the ISR?

Suggested Answer: B 🗳️

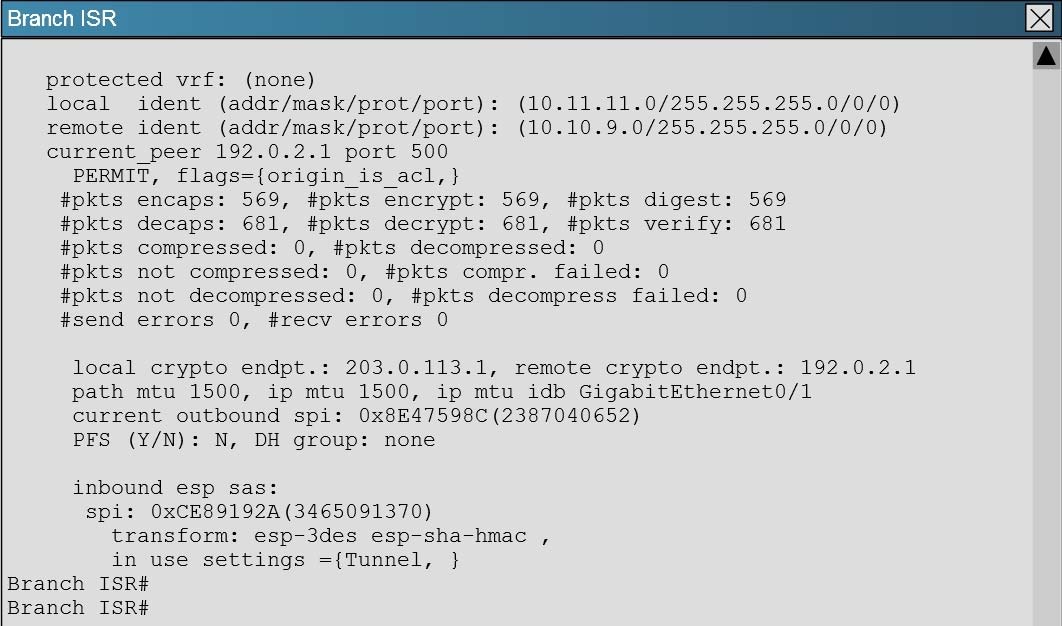

This can be seen from the "show crypto ipsec sa" command as shown below:
