Exam 200-301 topic 1 question 134 discussion

Actual exam question from Cisco's 200-301
Question #: 134
Topic #: 1
[All 200-301 Questions]

DRAG DROP -
Drag and drop the IPv6 address types from the left onto their descriptions on the right.
Select and Place:

Show Suggested Answer Hide Answer

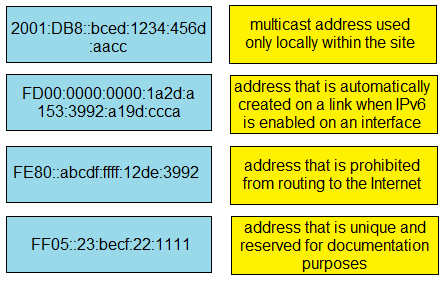

Suggested Answer:

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Dutch012
Highly Voted 2 years, 2 months ago
"prohibited"....... Cisco, please use simpler words in your questions, not all of us are born in the US.
upvoted 37 times
[Removed]
1 year, 7 months ago
you are extremly right
upvoted 1 times
...
...
sol_ls95
Highly Voted 2 years, 3 months ago
FF: MULTICAST FD: UNIQUE LOCAL FE: LINK LOCAL 2001: GLOBAL UNIQUE
upvoted 28 times
...
7d040c6
Most Recent 9 months ago
Given answer is correct
upvoted 1 times
...
[Removed]
1 year, 1 month ago
given answers are correct
upvoted 2 times
...
JunsK1e
1 year, 5 months ago
Answers correct
upvoted 1 times
...
xbololi
1 year, 10 months ago
reserved for documentation???? they really try to confuse people...
upvoted 3 times
Dunedrifter
1 year, 10 months ago
yup. 2001:0DB8::/32 is reserved to be used in tutorials and examples..
upvoted 3 times
...
...
[Removed]
1 year, 10 months ago
2001:db8 can't be used? I'm lost now...the more i study the more i get confused. I'm really about to give up
upvoted 4 times
...
iMo7ed
2 years, 2 months ago
2001:DB8 = Address that is unique and reserved for documentation purposes FD00 = Address that is prohibited from routing to the Internet FE80 = Address that is automatically created on a link when IPv6 is enabled on an Interface FF05 = Multicast address used only locally within the site
upvoted 11 times
...
binrayelias
2 years, 3 months ago
The soln is correct: multicast site-local is ff05::. fe80:: is unicast link local that is automatically generated on ipv6-enabled int fc00:: is unique local and can't be routed over internet. Similar to ipv4 rfc 1918 private address. 2001:: is global unicast reserved prefix for use in documentation. https://www.rfc-editor.org/rfc/rfc3849.txt
upvoted 4 times
binrayelias
2 years, 3 months ago
https://www.cisco.com/c/en/us/support/docs/ip/ip-version-6-ipv6/113328-ipv6-lla.html. reference for fe80::
upvoted 1 times
...
...
Choquete
2 years, 4 months ago
Then the solution is wrong?
upvoted 1 times
sol_ls95
2 years, 3 months ago
the solution is correct
upvoted 1 times
...
...
[Removed]
2 years, 4 months ago
- 2001 = multicast address used only locally within the site - FD00 = address that is automatically created on a link when IPv6 is enabled on an interface - FE80 = address that is prohibited from routing to the Internet - FF05 = address that is unique and reserved for documentation purposes
upvoted 2 times
[Removed]
2 years, 3 months ago
FF05: is a multicast address used only for local scopehttps://learningnetwork.cisco.com/s/question/0D53i00000Z9uywCAB/what-about-address-of-ff052
upvoted 3 times
...
sol_ls95
2 years, 3 months ago
2001 its not multicast
upvoted 2 times
...
...
