Exam 200-301 topic 1 question 506 discussion

Actual exam question from Cisco's 200-301

Question #: 506
Topic #: 1

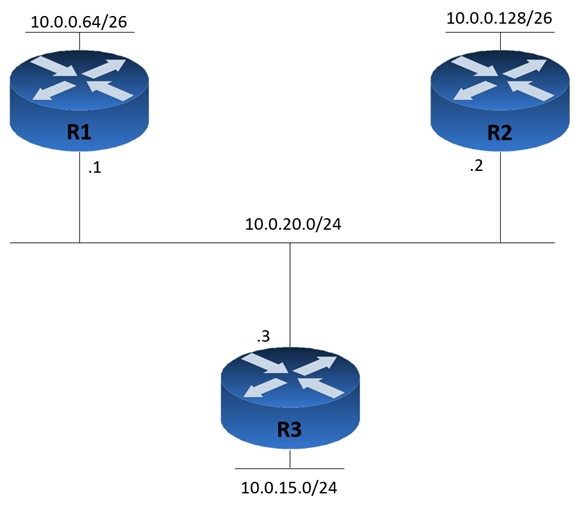

Refer to the exhibit. Router R1 is added to the network and configured with the 10.0.0.64/26 and 10.0.20.0/26 subnets. However, traffic destined for the LAN on
R3 is not accessible. Which command when executed on R1 defines a static route to reach the R3 LAN?

A. ip route 10.0.0.64 255.255.255.192 10.0.20.3
B. ip route 10.0.15.0 255.255.255.0 10.0.20.1
C. ip route 10.0.15.0 255.255.255.192 10.0.20.1
D. ip route 10.0.15.0 255.255.255.0 10.0.20.3

Show Suggested Answer

Suggested Answer: D 🗳️
We need to specify the destination network (10.0.15.0/24) and the next hop IP of the router to get to that network (10.0.20.3).

by Swiz005 at Nov. 11, 2022, 2:51 p.m.

Comments

Submit Cancel

[Removed]

7 months ago

Selected Answer: D

D is correct

upvoted 2 times

...

jayjihaekim

1 year, 4 months ago

Static Routing: ip route <Destination IP> <Subnet-mask> {interface address } 10.0.15.0 24 = 255.255.255.0 10.0.20.3

upvoted 2 times

...

Swiz005

1 year, 11 months ago

Why is A not the correct answer? - Can anyone help

upvoted 3 times

Surves

1 year, 11 months ago

Because the destination network is 10.0.15.0/24 and not 10.0.0.64
