Exam 300-115 topic 5 question 245 discussion

Actual exam question from Cisco's 300-115

Question #: 245
Topic #: 5

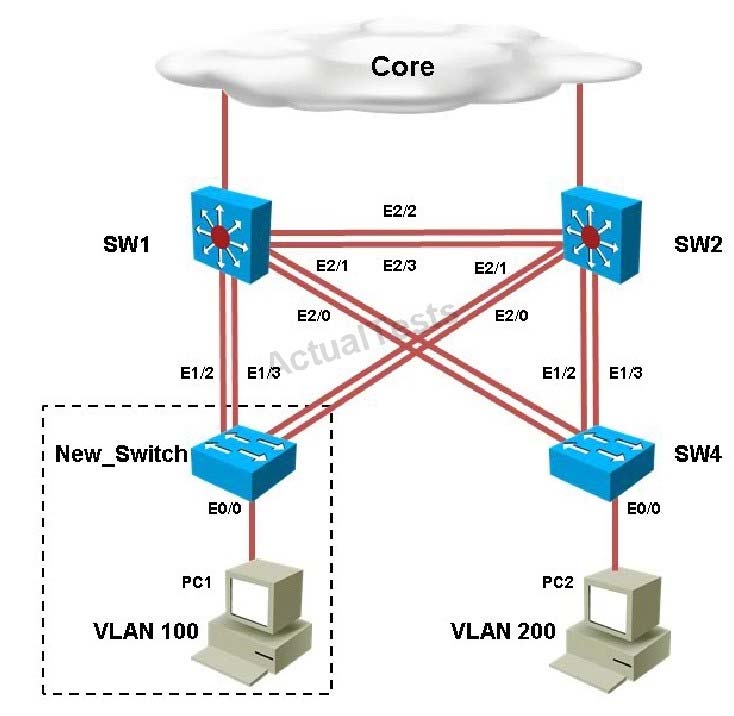

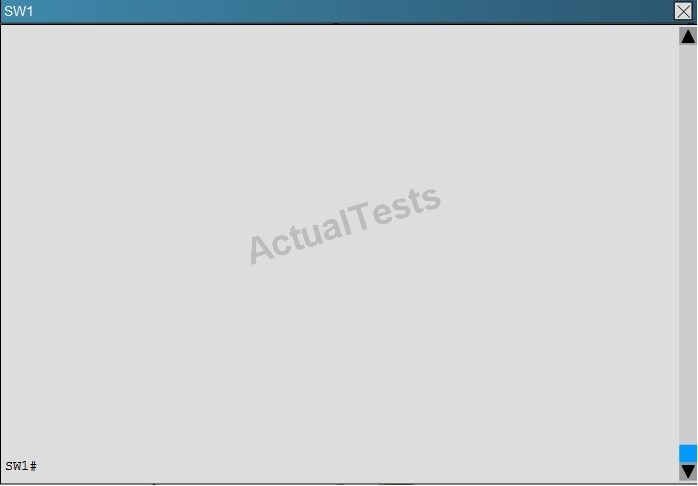

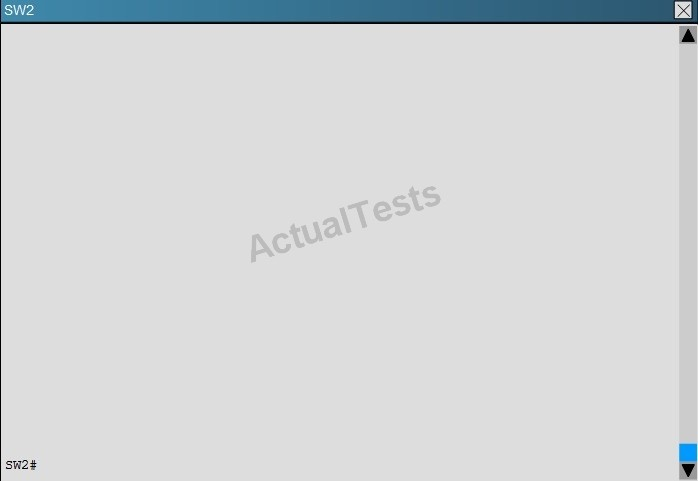

You have been asked to install and configure a new switch in a customer network. Use the console access to the existing and new switches to configure and verify correct device configuration.

Examine the VTP configuration. You are required to configure private VLANs for a new server deployment connecting to the SW4 switch. Which of the following configuration steps will allow creating private VLANs?

A. Disable VTP pruning on SW1 only
B. Disable VTP pruning on SW2 only
C. Disable VTP pruning on SW4 only
D. Disable VTP pruning on SW2, SW4 and New_Switch
E. Disable VTP pruning on New_Switch and SW4 only.

Show Suggested Answer

Suggested Answer: C 🗳️
To create private VLANs, you will need to only disable pruning on the switch that contains the private VLANs. In this case, only SW4 will connect to servers in a private VLAN.
Topic 2, Infrastructure Security

by Bastex at Nov. 20, 2019, 9:50 a.m.

Comments

Submit Cancel

Bastex

5 years, 5 months ago

Correct answer is A We can not create or configure VLANs on switch in client mode at all, but only on primary server. When I attempt create private vlans in my lab on primary server I received: “%Private VLANs can only be configured when VTP is in transparent/off modes in VTP version 1 or 2 and in server/transparent/off modes in VTP version 3 when pruning is turned off”. So we must configure private vlans on SW1 previosly disabling pruning on it.

upvoted 1 times

...
