Exam 350-501 topic 1 question 269 discussion

Actual exam question from Cisco's 350-501
Question #: 269
Topic #: 1
[All 350-501 Questions]

router(config)# route-map blackhole-trigger router(config-route-map)# match tag 777 router(config-route-map)# set ip next-hop 10.0.1.1 router(config-route-map)# set origin igp router{config-route-map)# set community no-export

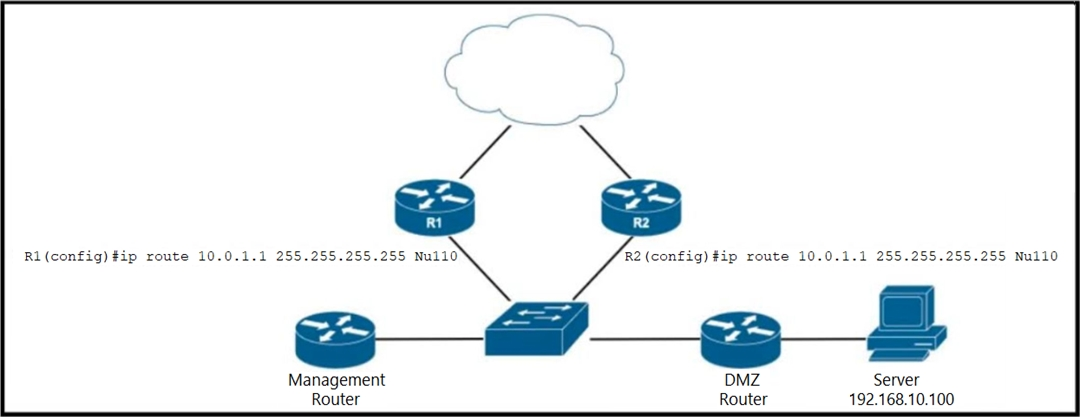

Refer to the exhibit. EIGRP is running across the core to exchange internal routes, and each router maintains iBGP adjacency with the other routers on the network. An operator has configured static routes on the edge routers R1 and R2 for IP address 10.0.1.1, which is used as a black hole route as shown. Which configuration should the operator implement to the management router to create a route map that will redistribute tagged static routes into BGP and create a static route to blackhole traffic with tag 777 that is destined to the server at 192.168.10.100?

  • A. router(config)# router bgp 55100 router(config-router)# redistribute static route-map blackhole-trigger router(config)# ip route 10.0.1.1 255.255.255.255 Null0 tag 777
  • B. router(config)# router bgp 55100 router(config-router)# redistribute static route-map blackhole-trigger router(config)# ip route 192.168.10.100 255.255.255.255 Null0 tag 777
  • C. router(config)# router bgp 55100 router(config-router)# redistribute connected router(config)# ip route 192.168.10.100 255.255.255.255 tag 777
  • D. router(config)# router bgp 55100 router(config-router)# redistribute connected route-map blackhole-trigger router(config)# ip route 192.168.10.100 255.255.255.255 Null0 tag 777
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️
Reference:
https://www.cisco.com/c/dam/en_us/about/security/intelligence/blackhole.pdf

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
ccie_race
Highly Voted 6 months ago
Option B need to be 'static' keyword and the correct IP address which 192.x.x.x
upvoted 6 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
