Exam 350-501 topic 1 question 234 discussion

Actual exam question from Cisco's 350-501
Question #: 234
Topic #: 1
[All 350-501 Questions]

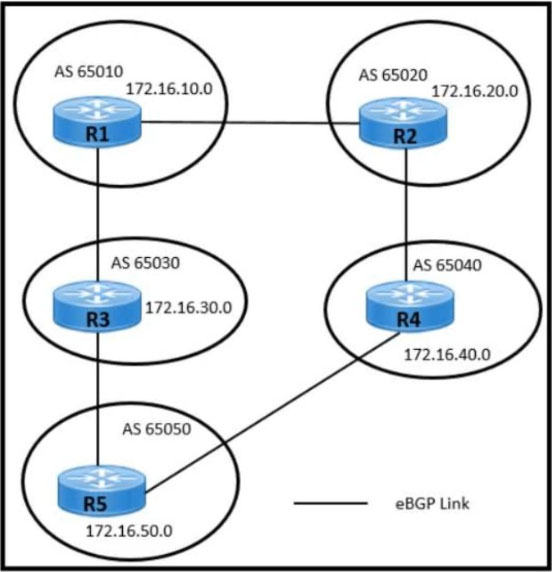

Refer to the exhibit. Users in AS 65010 are connected with the application server in AS 65050 with these requirements:
AS 65010 users are experiencing latency and congestion to connect with application server 172.16.50.10.

✑ AS 65030 must be restricted to become Transient Autonomous System for traffic flow.
✑ Links connected to AS 65020 and AS 65040 are underutilized and must be used efficiently for traffic.
Which two configurations must be implemented to meet these requirements? (Choose two.)

  • A. Apply the AS-Path route-map policy for traffic received from R3.
  • B. Configure the route map to prepend the AS-Path attribute for R5-R3 BGP peering.
  • C. Apply the MED route-map policy for traffic received from R4.
  • D. Configure a higher Local preference for R5-R4 BGP peering.
  • E. Configure the route map to set the MED 50 attribute for R5-R4 BGP peering.
Show Suggested Answer Hide Answer
Suggested Answer: AB 🗳️
by ccie_race at Oct. 22, 2022, 3:13 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
ccie_race
Highly Voted 2 years, 6 months ago
B and D B. Configure the route map to prepend the AS-Path attribute for R5-R3 BGP peering. [ outgoing traffic of R5 via R4] D. Configure a higher Local preference for R5-R4 BGP peering [incoming traffic to R5 via R4] E is incorrect because MED is not advertised by R4 to other ASs.
upvoted 11 times
cocopost
1 year, 1 month ago
Agree B and D but the other way around. thoughts? ,B. (R5)Configure the route map to prepend the AS-Path attribute for R5-R3 BGP peering. (incoming traffic through R3 less preferred) D. (R5)Configure a higher Local pref for R5-R4 (prefixes in) [outgoing traffic to R4 instead of R3]]
upvoted 4 times
...
thejag
2 years, 1 month ago
Agree B & D Good explanation
upvoted 3 times
...
...
ercintorun
Most Recent 10 months, 1 week ago
It is not clear where the changes are made, but assuming changes are applied on 65050 answer is B and D B. As path prepend alters the best path for 65010 to reach 65050. Because of longer path, 65010 is going to select the right hand side paths D. Increasing local preference alters the best path for 65050 when reaching 65010. It. will select the right hand side
upvoted 2 times
...
HARDCCNP
1 year, 2 months ago
Pergunta muito mal formulada. Na vida real não administramos o ASN de outro provedor para fazer essa manipulação.
upvoted 1 times
...
cerifyme85
1 year, 6 months ago
Selected Answer: AB
Configuring inbound traffic (traffic coming into 172.16.50.10) BGP attributes for inbound are MED and AS-Path AS-Path comes first in priority. Cannot be AS-Path and LP (ans B and D), it has to choose one attribute in other of priority
upvoted 1 times
...
Totalstranger
1 year, 8 months ago
Selected Answer: AB
A and B is the answer
upvoted 1 times
...
MMP
1 year, 9 months ago
Selected Answer: AB
For me is A & B , configure policy and apply it on the interface. Local Pref is only working for outgoing traffic in the same AS, we have only one router in AS 65050, so weight would be a solution but local Pref. For local Pref we would need at least 2 routers in 65050 for this to work
upvoted 3 times
...
Worgen44
1 year, 10 months ago
Selected Answer: BD
Agree with ccie_race
upvoted 2 times
...
