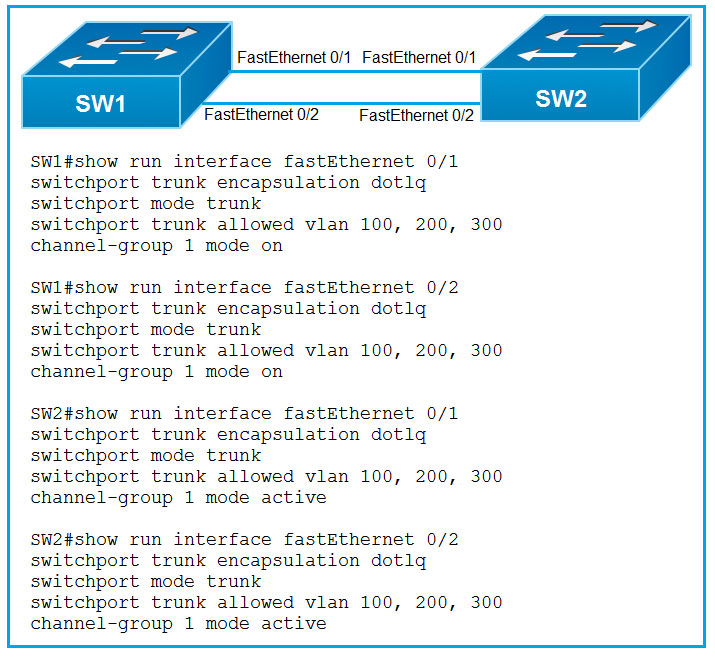

Refer to the exhibit. An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work establish an LACP port channel?
A.
Change the channel-group mode on SW1 to desirable
B.
Change the channel-group mode on SW1 to active or passive
C.
Change the channel-group mode on SW2 to auto
D.
Configure the interface port-channel 1 command on both swtiches
The question should read: "An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work. Which additional task allows the two switches to establish an LACP port channel?"
That said:
- SW1 has the channel-group locked in with mode on.
- SW2 has the channel-group configured to LACP mode active.
- For LACP EtherChannel to work, either:
- Both sides need to be mode on (change SW2 to mode on) – this isn’t an option. Or,
- LACP allows “active” and “passive”. SW1 should be changed to either of these for it to work.
For that reason, the correct answer is option ‘b’.
Note:
- Had PAgP been selected, the modes are “auto” and “desirable”.
the commands starting with "switchport" should not be inside the Po1 interface config instead inside the individual interface conforming the channel-group?
but also B is right
I think the question is not worded correctly but I believe answer given, B is correct.
upvoted 3 times
...
