Exam 350-501 topic 1 question 106 discussion

Actual exam question from Cisco's 350-501

Question #: 106
Topic #: 1

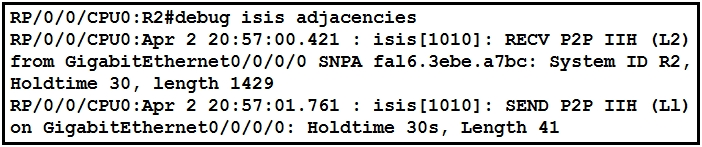

Refer to the exhibit. A network operator is attempting to configure an IS-IS adjacency between two routers, but the adjacency cannot be established. To troubleshoot the problem, the operator collects this debugging output.
Which interfaces are misconfigured on these routers?

A. The R2 interface is configured as point-to-point, and the peer router interface is configured as multipoint.
B. The R2 interface is configured as Level 1 only, and the peer router interface is configured as Level 2 only.
C. The peer router interface is configured as point-to-point, and the R2 interface is configured as multipoint.
D. The peer router interface is configured as Level 1 only, and the R2 interface is configured as Level 2 only.

Show Suggested Answer

Suggested Answer: B 🗳️

by mabrinaldi at Nov. 1, 2021, 5:24 p.m.

Comments

Submit Cancel

craterman

Highly Voted 9 months, 3 weeks ago

Selected Answer: B

The right answer is B. We see the both routers are send P2P hello. But R2 is Sending L1 and received from peer L2

upvoted 9 times

...

Cprest

Most Recent 11 months, 2 weeks ago

Totally agree, the answer correct is B!

upvoted 3 times

...

mabrinaldi

11 months, 3 weeks ago

Correct Ans. B. As you can see R2 is Sending L1 and received from Peer L2.

upvoted 3 times

michaljark

11 months, 3 weeks ago

I agree. I don't know who is marking this responses, but there are many wrong answers.

upvoted 5 times

...
