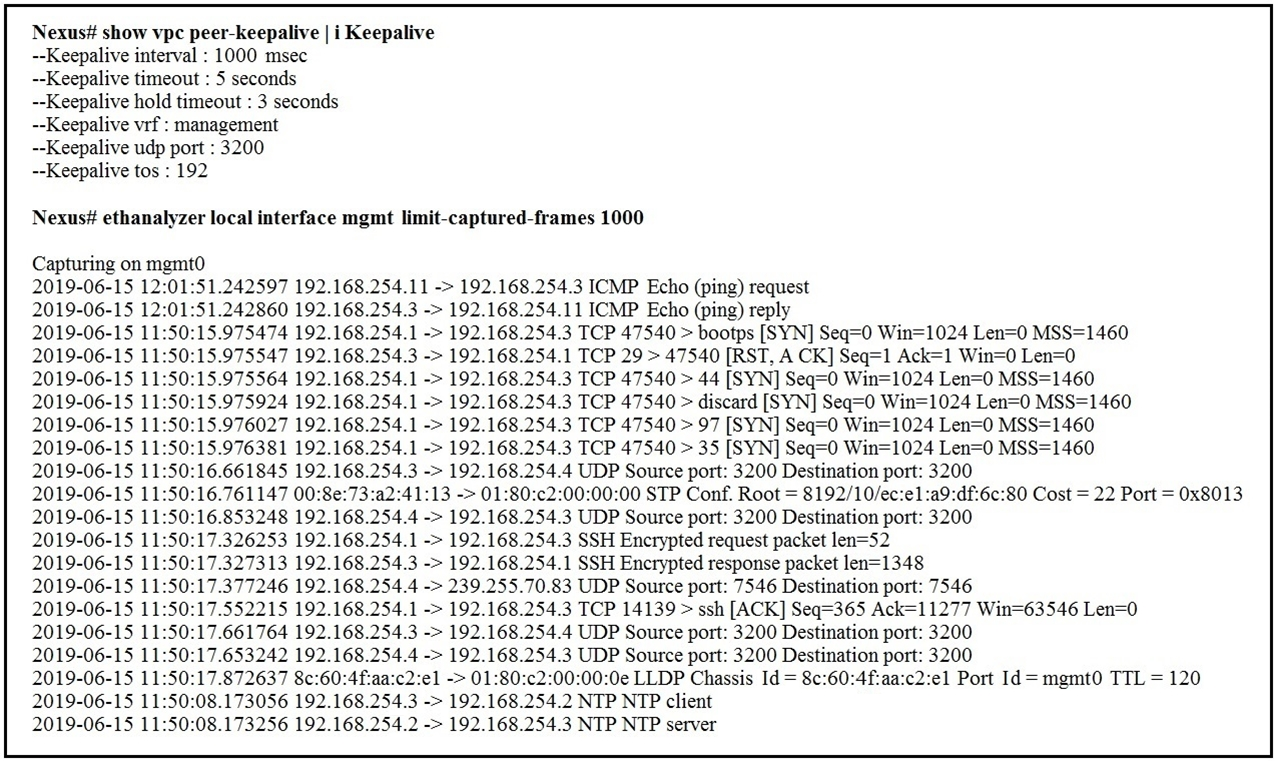

Refer to the exhibit. A flapping link issue has been reported on the vPC keepalive link. A packet capture has been activated on the Cisco Nexus switch. What is the destination IP address of the vPC keepalive packets that are sent by the switch?
Suggested Answer:A🗳️
3200 is the default UDP port for keepalive packets. Just look for the first line with port 3200 and note the destination IP, which is 192.168.254.4. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus3000/sw/interfaces/92x/b-cisco-nexus-3000-nx-os-interfaces-configuration-guide- 92x/b-cisco-nexus-3000-nx-os-interfaces-configuration-guide-92x_chapter_0110.html
A is correct. The keepalive is between 192.168.254.3 and 192.168.254.4. Apparently, the other log entries are showing that 192.168.254.3 is local on the switch.
A is correct. 3200 is the default UDP port for keepalive packets. Just look for the first line with port 3200 and not the destination IP, which is 192.168.254.4.
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus3000/sw/interfaces/92x/b-cisco-nexus-3000-nx-os-interfaces-configuration-guide-92x/b-cisco-nexus-3000-nx-os-interfaces-configuration-guide-92x_chapter_0110.html
upvoted 4 times
...
