Actual exam question from Cisco's 350-601
Question #: 41
Topic #: 1
[All 350-601 Questions]

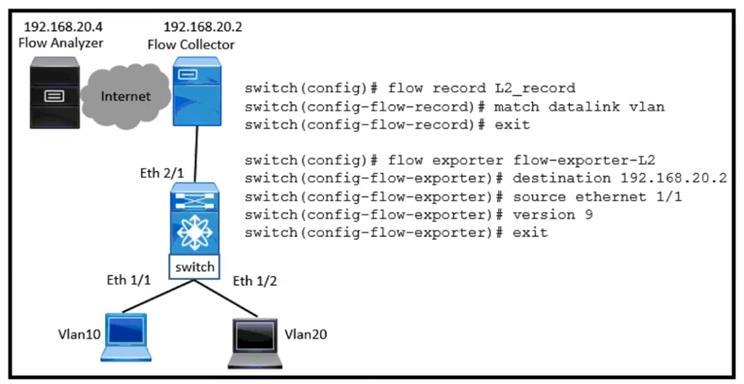

Refer to the exhibit. VLAN 10 is experiencing delays and packet drops when the traffic is forwarded through the switch. The destination flow analyzer accepts traffic captures of not more than 30 seconds. Which configuration implements the traffic capture that meets the requirements?

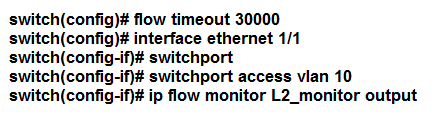

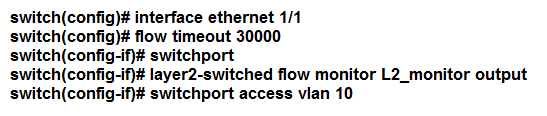

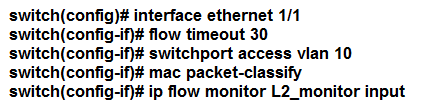

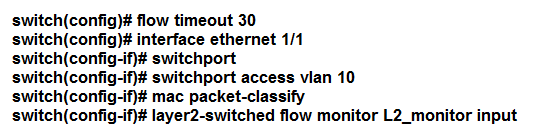

A.

B.

C.

D.

Show Suggested Answer Hide Answer
Suggested Answer: D
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-
OS_System_Management_Configuration_Guide_7x_chapter_011100.html

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
GeekT
Highly Voted 2 years, 11 months ago
D is correct https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x_chapter_011100.html
upvoted 6 times
dekiviser
2 years, 10 months ago
GeekT I see you corect many questions. Have you pass exam with your answers or you go with examtopics answers?
upvoted 1 times
...
...
groblok
Most Recent 9 months, 2 weeks ago
D is correct A & C are incorrect because timeout limit max is 60 B is incorrect because timeout is a global command and is not interface specific https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/4_2/nx-os/system_management/configuration/guide/sm_nx_os_cli/sm_15netflow.html
upvoted 2 times
...
GuyThatTakesDumps
1 year, 8 months ago
D is correct
upvoted 1 times
...
mauchi
2 years, 2 months ago
As the port is a l2 port only (configured through command "switchport") doesnt make sense to use the "ip flow", and makes more sense to use that "layer2-switched", just using logic
upvoted 4 times
...
designated
2 years, 8 months ago
Answer D is correct. A = Incorrect because the default range timeout is between 5 and 60 seconds. B = Incorrect because the timeout configuration is applied on global configuration (config)# and not on interface configuration (config-if)# C = Incorrect because the timeout configuration is applied on global configuration (config)# and not on (config-if)# + Note the interface ethernet command and then the flow timeout command. Also, the timeout value could not be more than 60.
upvoted 4 times
...
crosillo30
2 years, 9 months ago
Answer D is correct https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/4_2/nx-os/system_management/configuration/guide/sm_nx_os_cli/sm_15netflow.html
upvoted 3 times
...
cristian_sgua
2 years, 9 months ago
Answer D is correct. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x_chapter_011100.html
upvoted 3 times
...
ShriKrishna
2 years, 11 months ago
Answer must be C ???
upvoted 3 times
Mustafa
2 days, 18 hours ago
I agree with you answer is C. this is my reference. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/4_2/nx-os/system_management/configuration/guide/sm_nx_os_cli/sm_15netflow.html#wp1094159 The range for flow time out is from 60 to 4092. The default is 1800.
upvoted 1 times
...
...
