Exam 300-410 topic 1 question 52 discussion

Actual exam question from Cisco's 300-410
Question #: 52
Topic #: 1
[All 300-410 Questions]

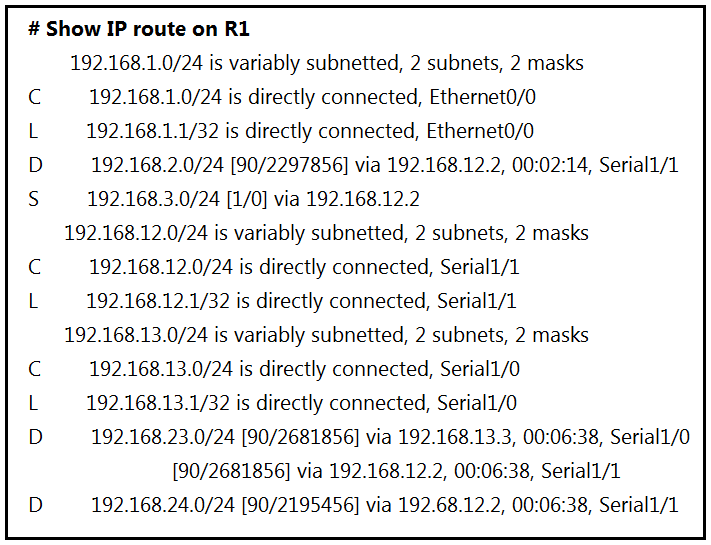

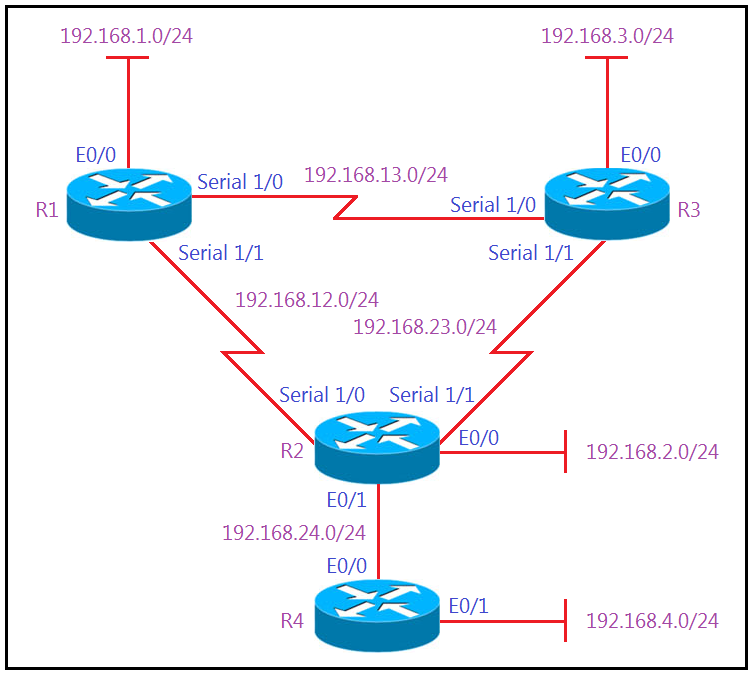

Refer to the exhibits. All the serial links between R1, R2, and R3 have the same bandwidth. Users on the 192.168.1.0/24 network report slow response times while they access resources on network 192.168.3.0/24. When a traceroute is run on the path, it shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up.
What must the network administrator do to fix the slowness?

  • A. Add a static route on R1 using the next hop of R3.
  • B. Remove the static route on R1.
  • C. Change the Administrative Distance of EIGRP to 5.
  • D. Redistribute the R1 static route to EIGRP.
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️
by Masashi_O at June 16, 2021, 9:27 a.m.

Comments

Chosen Answer:
This is a voting comment (?) , you can switch to a simple comment.
Switch to a voting comment New
Submit Cancel
bk989
2 months, 3 weeks ago
Note the link between R2 and R3 and the LAN on R2 are in EIGRP. The LAN (192.168.3.0/24) on R3 is an EIGRP route as well. If so removing the route is the best idea.
upvoted 1 times
...
[Removed]
4 months, 1 week ago
Selected Answer: B
B is correct
upvoted 1 times
...
Horsefeathers
10 months ago
A - incorrect - adding another static route pointing to R3 would cause load balancing - packets alternating between the faster and the slower path - would not fix the slowness issue B - correct - EIGRP is configured and we can assume that routes are being advertised (i.e., network 192.168.2.0/24 was learnt via EIGRP), so the route should be installed via EIGRP C - incorrect - static route has lower AD than 5 D - incorrect - external EIGRP has AD of 170, static route still preferred
upvoted 1 times
...
inteldarvid
1 year, 4 months ago
Selected Answer: B
THE ANSWER CORERCT IS B, BECAUSE, HAVE STATIC ROUTE WITH AD "1 lower than Eeigrp "90"
upvoted 1 times
...
Nhan
2 years, 2 months ago
The given answer is correct, the static route is on the serial interface, also the ad is 1, that why the traffic chose that link to get to the R3, remove the static route will then the R1 will change the routing table and fix the slow link issue
upvoted 1 times
...
davdtech
2 years, 5 months ago
If you add another static route it will not overwrite the other one. so I think we are assuming that all routers are advertising their networks. so the best choice is to remove the static route.
upvoted 2 times
...
Hack4
2 years, 9 months ago
YES THE b ANSWER IS CORRECT
upvoted 1 times
...
Carl1999
2 years, 9 months ago
Selected Answer: B
B is correct. easy...
upvoted 1 times
...
[Removed]
3 years, 3 months ago
The given answer is correct
upvoted 1 times
...
cakmamail
3 years, 3 months ago
Given answer is correct. After deleting static route, eigrp learned route will be added to routing table
upvoted 1 times
OakA1
3 years, 1 month ago
How do you know that the connected routes are redistributed in EIGRP. Neither you know if 192.168.3.0/24 is participating in EIGRP. For me it's remove static route via R2 and add a new static that points to R3. Alternatively, information about EIGRP on R3 should be provided
upvoted 3 times
...
...
Masashi_O
3 years, 5 months ago
If the network administrator deletes the static route through R2, there will be no route to 192.168.3.0 in the routing table, so I think it is correct to add a static route with R3 as the next hop, is this wrong?
upvoted 2 times
Surfside92
2 years, 10 months ago
You are right. If as most people say the correct answer is b - and the static route to 192.168.3 is removed on R1 - then R1 has no route to that network - from the output its not learned from eigrp. However we have to assume the route to network 192.168.3/24 will show up in the routing table via eigrp when the static route is removed. Also no other answer fully satisfies the solution. If answer A read - add a floating static route to r3 i would be inclined to go for that - but it doesn't !
upvoted 3 times
...
spapi0390
2 years, 11 months ago
Wrong since you can not add two static routes from the same lookup ip add. As far as route 192.168.4.0 which is not participating in te EIGRP process but the route towards the R2 yes then it means redistribute connected is configured.
upvoted 1 times
JOKERR
2 years, 11 months ago
I think given answer is correct. But you CAN add 2 static routes to same destination. ip route 50.0.0.0 255.255.255.0 172.16.45.2 ip route 50.0.0.0 255.255.255.0 10.1.1.2 C1#sh ip rout S 50.0.0.0 [1/0] via 172.16.45.2 [1/0] via 10.1.1.2
upvoted 1 times
...
...
[Removed]
2 years, 9 months ago
Only think with configuring 2 statics is you dont know which route it will take and it would still leave users complaining.
upvoted 2 times
...
...
