Exam 200-105 topic 1 question 261 discussion

Actual exam question from Cisco's 200-105

Question #: 261
Topic #: 1

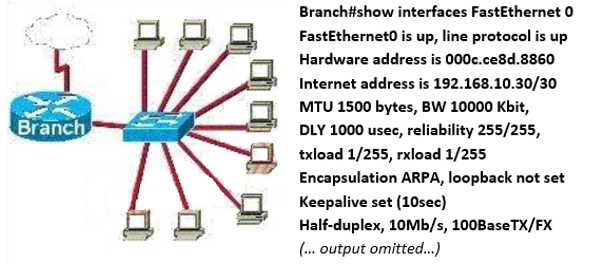

A router has been configured to provide the nine users on the branch office LAN with Internet access, as shown in the diagram. It is found that some of the users on the LAN cannot reach the Internet. Based on the topology and router output shown, which command should be issued on the router to correct the problem?

A. Branch(config-if)# no shutdown
B. Branch(config-if)# duplex full
C. Branch(config-if)# no keepalive
D. Branch(config-if)# ip address 192.168.10.30 255.255.255.240
E. Branch(config-if)# bandwidth 100
F. Branch(config-if)# encapsulation 802.3

Show Suggested Answer

Suggested Answer: D 🗳️

by adeshtall at July 29, 2019, 11:15 a.m.

Comments

Submit Cancel

adeshtall

5 years, 9 months ago

Question not clear if the line interface and protocol of fa0/0 is up/up which means its working and address have been configured as shown on brunch router , why again add another adress ?

upvoted 1 times

Quan

5 years, 7 months ago

There are nine hosts ==>> need more IP addresses for the LAN. The current subnet mask is /30, which means ONLY 2 IP addresses available. The answer's subnet mask is /28 ==>> It provides 14 IP addresses.

upvoted 6 times

SmaCisco

5 years, 2 months ago

Good catch

upvoted 1 times

...
