Exam 300-101 topic 2 question 4 discussion

Scenario -

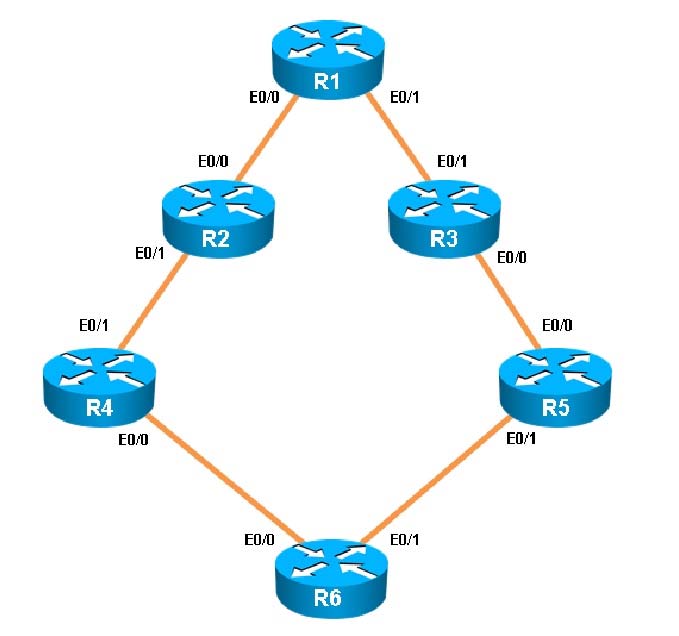

You have been asked to evaluate how EIGRP is functioning in a customer network. Access the device consoles to answer the questions.

Instructions -
- Enter IOS commands on the device to verify network operation and answer for multiple-choice questions.
- THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.

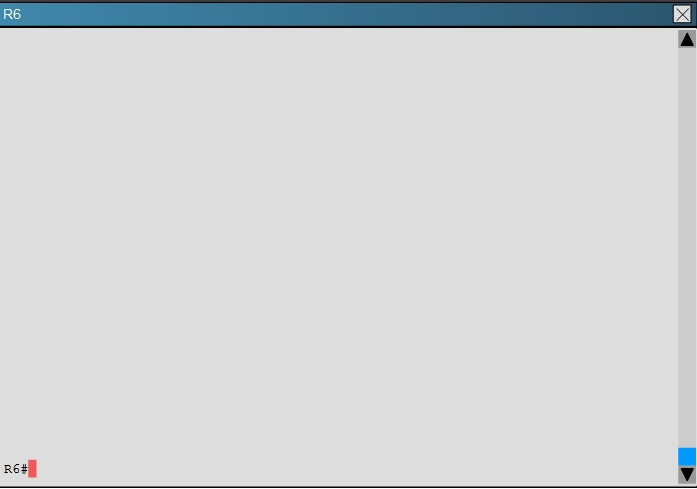

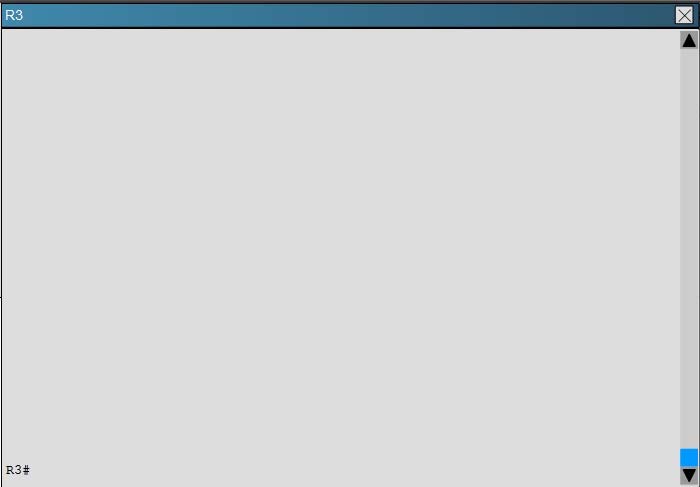

- Click on the individual device icons or use the tab at the bottom of the screen to gain access to the console for each device.
- No console or enable passwords are required.
- To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.
- There are four multiple-choice questions with this task. Be sure to answer all five questions before selecting the Next button.







What is the advertised distance for the 192.168.46.0 network on R1?

Suggested Answer: C 🗳️

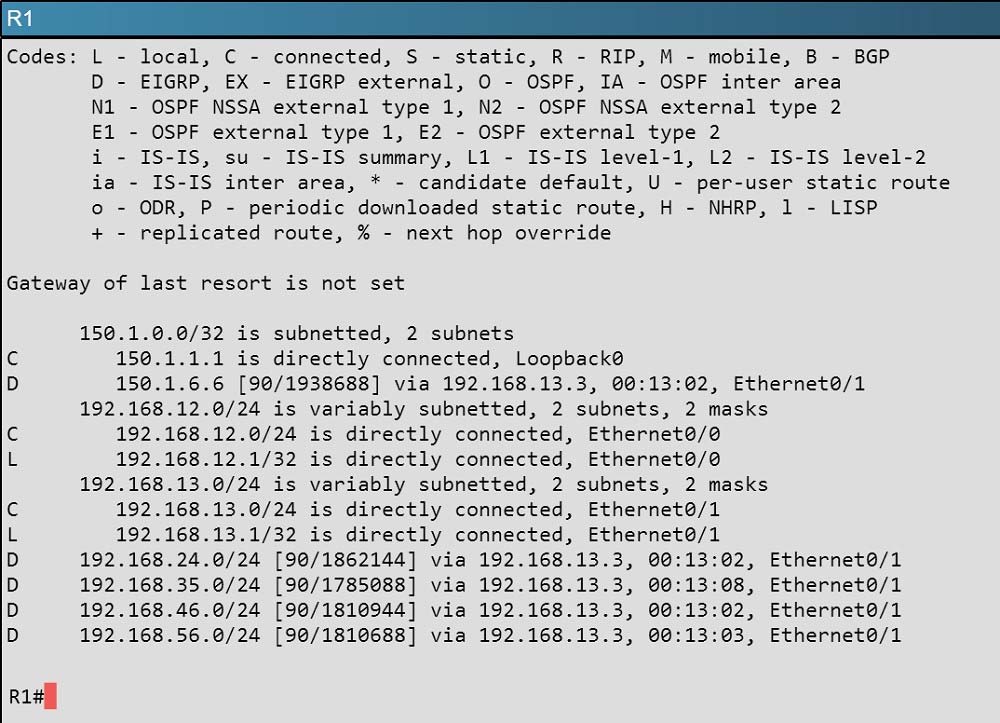

R1s routing table is as follows -

The numbers after the route specify the administrative distance of the route (90 for EIGRP) and the distance metric of that particular route, which is shown as
1810944 for the 192.168.46.0 route.
