Exam 300-101 topic 2 question 518 discussion

Actual exam question from Cisco's 300-101

Question #: 518
Topic #: 2

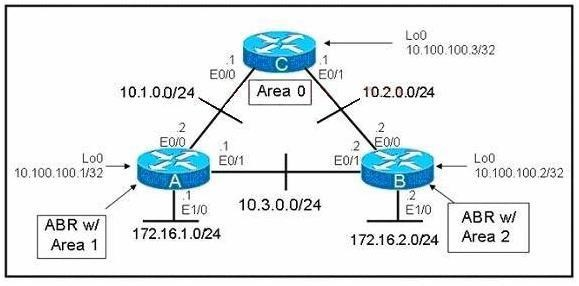

Refer to the exhibits. What can be done to fix the problem?

RouterA#debug ip ospf events -

OSPF events debugging is on -
RouterA#
04:43:16: OSPF. Rcv pkt from 10.3.0.2, Ethernet0/1, area 0.0.0.1 mismatch area 0.0.0.2 in the header
04:43:19: OSPF. Rcv hello from 10.100.100.3 area 0 from Ethernet0/0 10.1.0.1
04:43:19: OSPF. End of hello processing

A. Change router B E0/1 interface to area 0.
B. Change router A interface E0/1 to area 0.0.0.2.
C. Configure the E0/1 interfaces of router A and router B to be in area 0.
D. Shut down the E0/1 interfaces in router A and router B as OSPF does not allow "back doors" between areas.
E. Remove the E0/1 interfaces in router A and router B from the OSPF process. Use static routes to route data directly from router A to router B to avoid passing

Show Suggested Answer

Suggested Answer: data through router C in area 0. 🗳️
Reference:
http://www.cisco.com/en/US/tech/tk365/technologies_white_paper09186a0080094e9e.shtml (See topic: the backbone and area 0)

by diegonamaste at Feb. 20, 2020, 10:09 p.m.

Comments

Submit Cancel

diegonamaste

5 years, 2 months ago

C. Configure the E0/1 interfaces of router A and router B to be in area 0

upvoted 1 times

...
