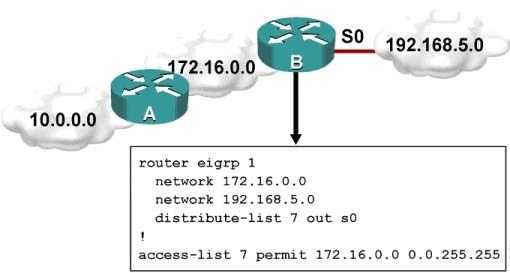

Refer to the exhibit. Which one statement is true?
A.
Traffic from the 172.16.0.0/16 network will be blocked by the ACL.
B.
The 10.0.0.0/8 network will not be advertised by Router B because the network statement for the 10.0.0.0/8 network is missing from Router B.
C.
The 10.0.0.0/8 network will not be in the routing table on Router B.
D.
Users on the 10.0.0.0/8 network can successfully ping users on the 192.168.5.0/24 network, but users on the 192.168.5.0/24 cannot successfully ping users on
There is missing and option E, which is actually a correct answer:
E. Router B will not advertise the 10.0.0.0/8 network because it is blocked by the ACL.
upvoted 1 times
...
