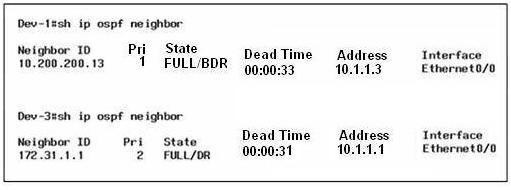

The Dev-1 and Dev-3 routers are OSPF neighbors over the Ethernet 0/0 connection. Based on the show ip ospf neighbor output from the Dev-1 and Dev-3 routers, which statement is true?
A.
Dev-1 is the DR because it has a higher OSPF router priority.
B.
Dev-1 is the DR because it has a lower OSPF router ID.
C.
Dev-3 is the DR because it has a higher OSPF router priority.
D.
Dev-3 is the DR because it has a lower OSPF router ID.
Suggested Answer:E. Both Dev-1 and Dev-3 are using the default OSPF router priority.🗳️
The output shown above displays information about the neighbors, so from Dev-3 we see that the priority of Dev-1 is 2, and that Dev-1 is the DR. From Dev-1 we can see that its neighbor (Dev-3) is the BDR and has an OSPF priority of 1.
Dev-1 is the DR because it has a higher OSPF router priority.
upvoted 2 times
...
