Exam 300-510 topic 1 question 55 discussion

Actual exam question from Cisco's 300-510
Question #: 55
Topic #: 1
[All 300-510 Questions]

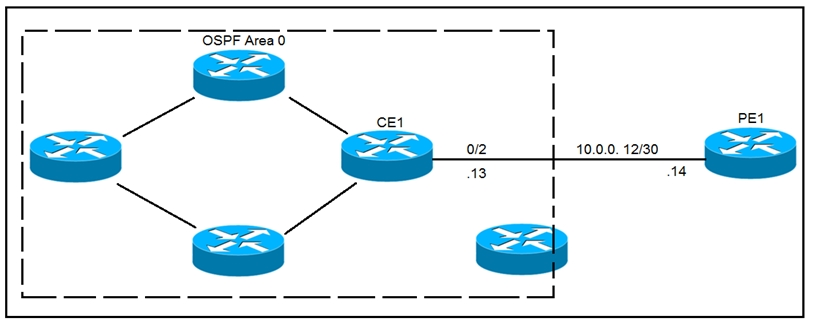

Refer to the exhibit. CE1 is the gateway router into the provider network via PE1. A network operator must inject a default route into OSPF area 0. All devices inside area 0 must be able to reach PE1. Which configuration achieves this goal?
A.

B.

C.

D.

Show Suggested Answer Hide Answer
Suggested Answer: C
Reference:
https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/47868-ospfdb9.html
by jospinales at Oct. 12, 2023, 7:15 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
jospinales
1 year ago
Why not A?
upvoted 1 times
thejag
10 months, 2 weeks ago

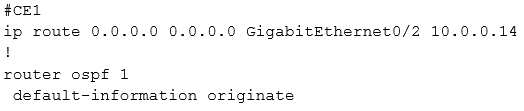

Because there needs to be a default route to PE1 IP 10.0.0.14 specifically. To achieve this, you make a static route and then advertise it to ospf with the "default-information originate" command. With A, the OSPF network will have a default route towards CE1 but that does not help reach the Internet breakout at PE1.
upvoted 3 times
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
A voting comment increases the vote count for the chosen answer by one.

Upvoting a comment with a selected answer will also increase the vote count towards that answer by one. So if you see a comment that you already agree with, you can upvote it instead of posting a new comment.

SaveCancel
