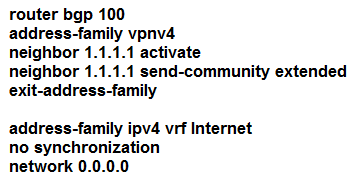

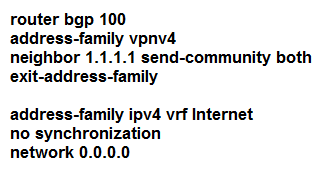

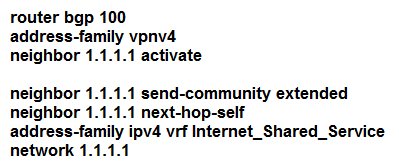

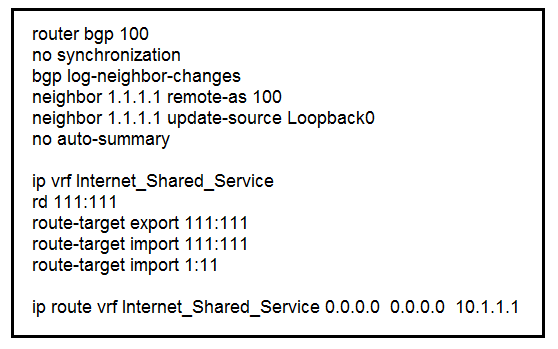

Refer to the exhibit. Which additional configuration must an engineer apply to the edge router to inject a default route into the MP-BGP address family for the Internet_Shared_Service dedicated VRF? A. B. C. D.
A is Correct
Explanation:
The router bgp command enters BGP configuration mode.
The address-family vpnv4 command enters the IPv4 VPNv4 address family configuration mode.
The neighbor 1.1.1.1 activate command activates the BGP neighborship with the neighbor 1.1.1.1.
The neighbor 1.1.1.1 send-community both command enables the sending of both standard and extended communities to the neighbor 1.1.1.1.
The exit-address-family command exits the IPv4 VPNv4 address family configuration mode.
The address-family ipv4 vrf Internet_Shared_Service command enters the IPv4 address family configuration mode for the "Internet_Shared_Service" VRF.
The no synchronization command disables synchronization between BGP and the IGP for this address family.
The network 0.0.0.0 command injects the default route into the "Internet_Shared_Service" VRF.
upvoted 2 times
...
