Exam 350-501 topic 1 question 243 discussion

Actual exam question from Cisco's 350-501
Question #: 243
Topic #: 1
[All 350-501 Questions]

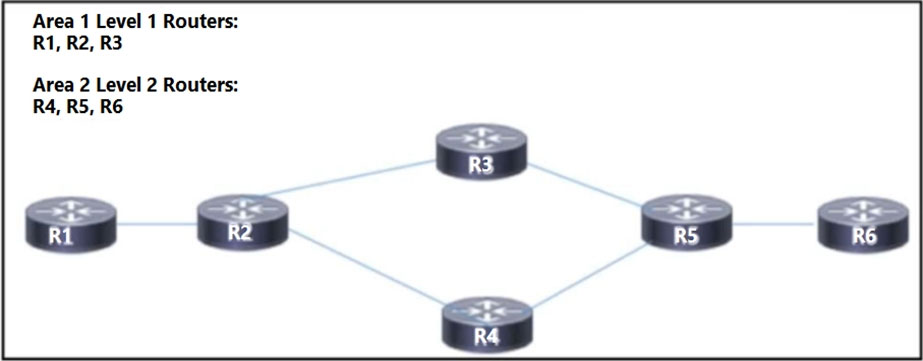

Refer to the exhibit. A network engineer is in the process of implementing IS -IS Area 1 and Area 2 on this network to segregate traffic between different segments of the network. The hosts in the two new areas must maintain the ability to communicate with one another in both directions. Which additional change must be applied?

  • A. Reconfigure routers R2 and R5 as Level 1/Level 2 routers.
  • B. Reconfigure routers R1, R2, R5, and R6 as Level 1/Level 2 routers.
  • C. Reconfigure routers R4, R5, and R6 as Level 1 routers.
  • D. Reconfigure either R3 or R4 as a Level 1/Level 2 router.
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️
by mr_warrior at March 12, 2023, 8:27 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
layervpn2
4 days, 7 hours ago
Selected Answer: A
I will go for option A The main point we need to consider is one of the Level 1 routers need to be configured as L1/L2 so it can form adjacencies with an L2 router in Area 2 A satisfies this requirement. Option D doesn't meet the requirement because of the OR, ie R3 or R4.
upvoted 1 times
...
rans3001
9 months ago
Selected Answer: A
D is excluded: In case we configure R3 as L1/L2, R3 and R5 will have a L2 adjacency (L2 works between different areas), and R3 will become an ABR for area 1 In case we configure R4 as L1/L2, R4 and R2 will not establish any adjacency (R2 is L1, and L1 doesn't work between different areas) A does the job (partially): R2 and R4 will establish a L2 adjacency (L2 works between different areas), and R2 will become an ABR for area 1 R3 and R5 will not establish any adjacency (R3 is L1, and L1 doesn't work between different areas)
upvoted 1 times
...
TonBud
9 months ago
Selected Answer: A
A is correct
upvoted 1 times
...
cocopost
1 year ago
Any answer is correct which upholds the contiguous nature of the level 2 backbone while providing an exit point to Level 1 routers However some answers are less optimal than others D: Reconfigure only one of R3 or R4 to L1/L2, This answer fulfils the objective but leaves the other router with an unused link since it cannot communicate with one of its neighbors. traffic must take a circuitous path to the far end R1 router. It would be better to convert both to L1/L2 B: Reconfigure routers R1, R2 R5. and R6 as Level 1/Level 2 routers. This solution does little to segregate the routing table because now have two massive routing tables (L1 and L2) which span across the network from R1 to R6 A: Reconfigure routers R2 and R5 as Level 1/Level 2 routers This effectively separates the L1 and L2 areas into 4 routers each and allows all links to be used C: goes against the original aim I would go with answer A:
upvoted 1 times
...
Martiian
1 year, 3 months ago
I will have to go with option A... I read the following: "By default, the L1/L2 router allows one way passage of prefixes from L1 Area to L2 Area, but not in reverse." https://www.cisco.com/c/en/us/support/docs/ip/integrated-intermediate-system-to-intermediate-system-is-is/200293-IS-IS-Adjacency-and-Area-Types.html There is more within the link... I g2g, check it out.
upvoted 2 times
kirrim
3 months, 2 weeks ago
Martiian's explanation is the correct one of why B is incorrect. Here are more references if you don't believe the link they have already supplied: https://networklessons.com/cisco/ccie-routing-switching-written/is-is-route-leaking https://www.juniper.net/documentation/us/en/software/junos/is-is/topics/example/example-configuring-is-is-route-leaking-L2-to-L1.html Correct answer: A
upvoted 1 times
...
Martiian
1 year, 3 months ago
Tried each configuration in a lab (used loopbacks on R1 and R6 as the two hosts that need to communicate): A: R1 - gets a default route as it is a L1 router. R6 gets the prefix as it is an L2 router. B: R1 and R6 both have the corresponding prefix (i.e. no default route). Communication between the two loopbacks work. C: --- did not do this as it is obviously wrong -- D: Configured R3 as a L1/L2 router. R1 retrieved a default router from R3. R6 actually has the 1.1.1.1/32 route in its routing table. R1 and R6 are able to communicate with one another. Seems like the routing table of R1 and R6 are the same whether you do configuration A or D... however, routing path is different (in D it goes only through R3, while in A it load balances). B is the only configuration that offers a routing table that is both routes in the routing table. Honestly... not sure what the correct answer would be, I would still go with A... idk.
upvoted 1 times
...
...
cerifyme85
1 year, 5 months ago
Selected Answer: A
R2 ==> L1/L2 ==> Has L1 with R3 and L2 with R4 and L1 with R1 R5 ==> L1/L2 ==> Has L1 with R3 and L2 with R4 and L2 with R6
upvoted 2 times
...
karen1337
1 year, 5 months ago
Selected Answer: D
I initially picked A, but I think Cisco's answer will be D. A and B are basically the same thing. Changing R2 to L1/L2 is the only change that enables end-to-end connectivity. All other changes in A and B (including R5) do nothing. If R5 is changed to L1/L2, it will still not have a neighborship with R3. That's why I'm saying since answers A and B are basically the same answer, I think neither of them are what Cisco considers the right answer. If I get this question, I'll choose D, but I agree with everyone saying D is wrong.
upvoted 1 times
cerifyme85
1 year, 5 months ago
it say's R3 0r R4 not R3 "and" R4. B is not similar to A. NO need for router 6 to be l1/l2 .. it should be core/backbone and it is not stretching L2 to L1. Only answer that makes sense is A R2 ==> L1/L2 ==> Has L1 with R3 and L2 with R4 and L1 with R1 R5 ==> L1/L2 ==> Has L1 with R3 and L2 with R4 and L2 with R6
upvoted 1 times
...
...
Seele
1 year, 9 months ago
Hmm, A,B,D answers can be used to maintain end-to-end connectivity, but if we're going to take into consideration on the ease of configuration, choice D will be the best one because you will only need to configure R3 as L1/L2 to do it. That is, if we treat the OR statement as the exam trying to confuse us. After all, it said either R3 or R4, means we just only need to use one, not both. And the correct one lies on R3.
upvoted 1 times
Seele
1 year, 9 months ago
In any case, I hope this one doesn't appear in my exam lol.
upvoted 1 times
...
...
thejag
1 year, 9 months ago
I think A because having R2 as level 1/2 will make the necessary adjacency to R4 which is an L2 and in Area 2. You need L2 peer to connect different areas not L1. B I'm not sure it is wrong but it seems redundant to make R1 and R6 Level 1/2 C is wrong because it doesn't make any router in Area 1 (which has L1 only routers) border to Area 2 an L2 router D is wrong because of the OR as mentioned by others.
upvoted 4 times
ENTJ
1 year, 7 months ago
Agree for all of the same reasons.
upvoted 1 times
...
...
nerdymarwa
1 year, 9 months ago
incorrect. please take notice of answer D saying "R3 OR R4". we need to maintain end-to-end connectivity in both directions. if you configure R3 for example as Level 1/2 and leave off R4 as level 2.. you broke a rule... R2 cannot form direct connectivity with R4 as L1 --> L2 neighborships are not allowed. i vote for answer A
upvoted 3 times
nerdymarwa
1 year, 9 months ago
C can't be correct as again direct connectivity between L2 and L1 is not allowed. B might seem right but it is a horrible solution - it eliminates the scalability and flexibility of IS-IS. D is incorrect and explained in my answer above. A is the correct answer
upvoted 2 times
...
...
12_sdeEQ
1 year, 11 months ago
Agree with D ,
upvoted 1 times
...
JoostAtExamtopics
1 year, 11 months ago
I'd say answer is B although only required for R2 and R5. D would be ok for R3 but not R4 as it would still have no L1 adjacency with R2 due to area mismatch.
upvoted 1 times
JoostAtExamtopics
1 year, 11 months ago
Reading it again, Answer A would be better instead of B.
upvoted 1 times
...
...
12_sdeEQ
1 year, 12 months ago
Selected Answer: D
D is the Correct answer
upvoted 1 times
...
