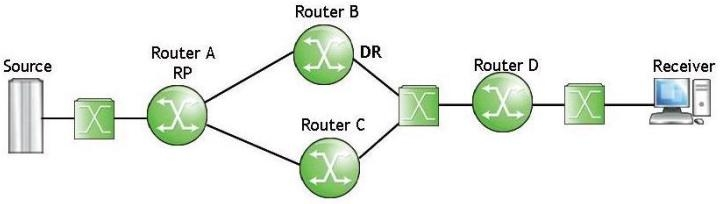

Which of the following statements best describes the behavior seen in the network when a receiver joins a multicast channel in the PIM ASM network shown in the exhibit?
A.
Both Router B and Router C will propagate a PIM (*, G) Join to the RP when a receiver joins
B.
Only Router B will propagate a PIM (*.G) Join to the RP when a receiver joins
C.
Only Router C will propagate a PIM(\G) Join to the RP when a receiver joins
D.
Depends on the next hop for RP in Router D's RPF table
Router D sends the PIM *,G Join message with destination IP 224.0.0.13 towards the switch interface (as the unicast routing table indicates). The switch floods the message to Router B and C, router B is the DR so it sends the PIM message towards the RP. Router C does not send the PIM message.
upvoted 4 times
...
